Siemens SINAMICS Series - Page 101

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-33

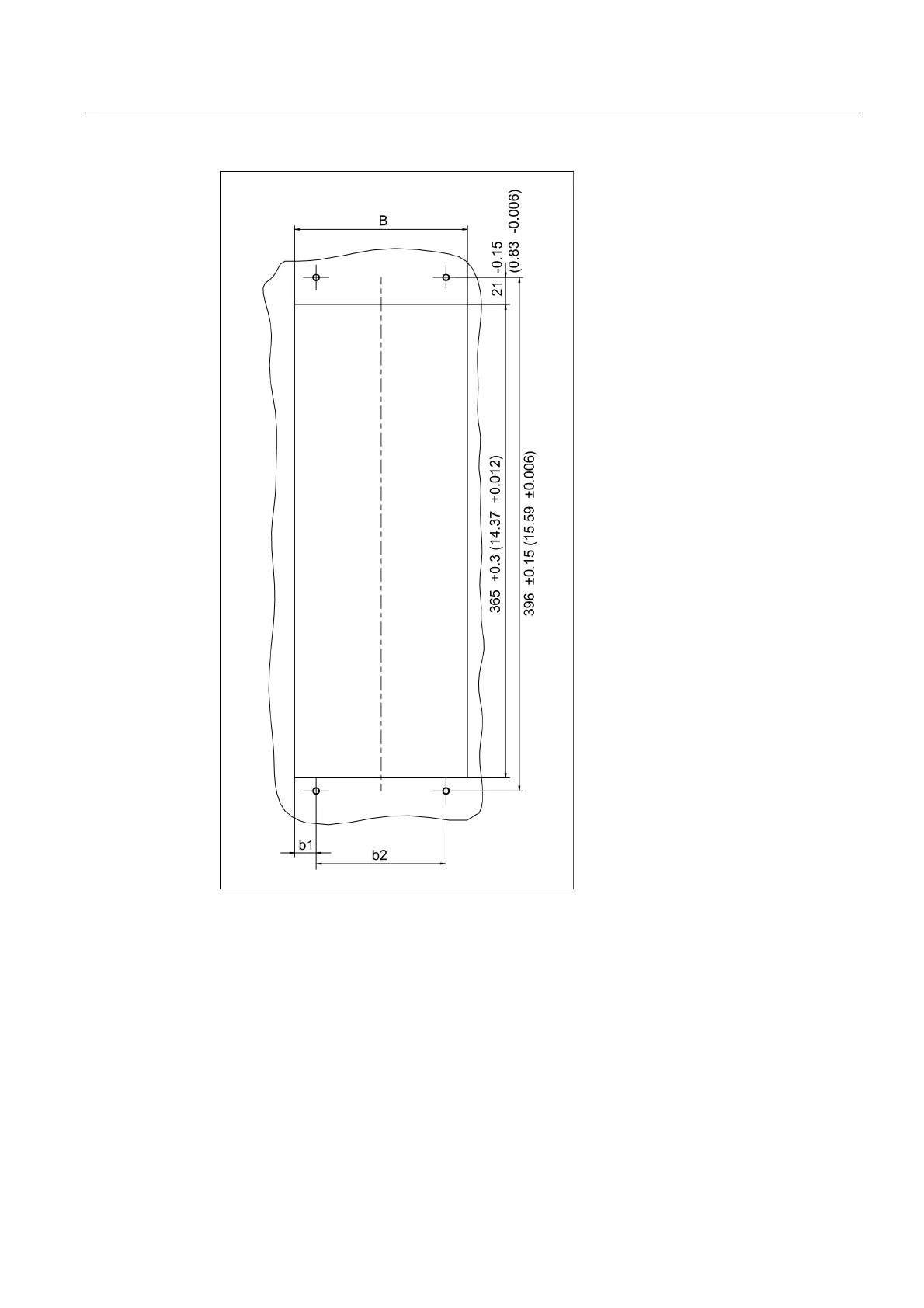

Figure 3-17 Installation openings for the Power Module with external air cooling (50 mm to 200 mm)
