Siemens SINAMICS Series Equipment Manual

Options
6.2 DC link supply adapter
Equipment Manuel for Booksize Power Modules
6-26 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6.2.6 Electrical Connection

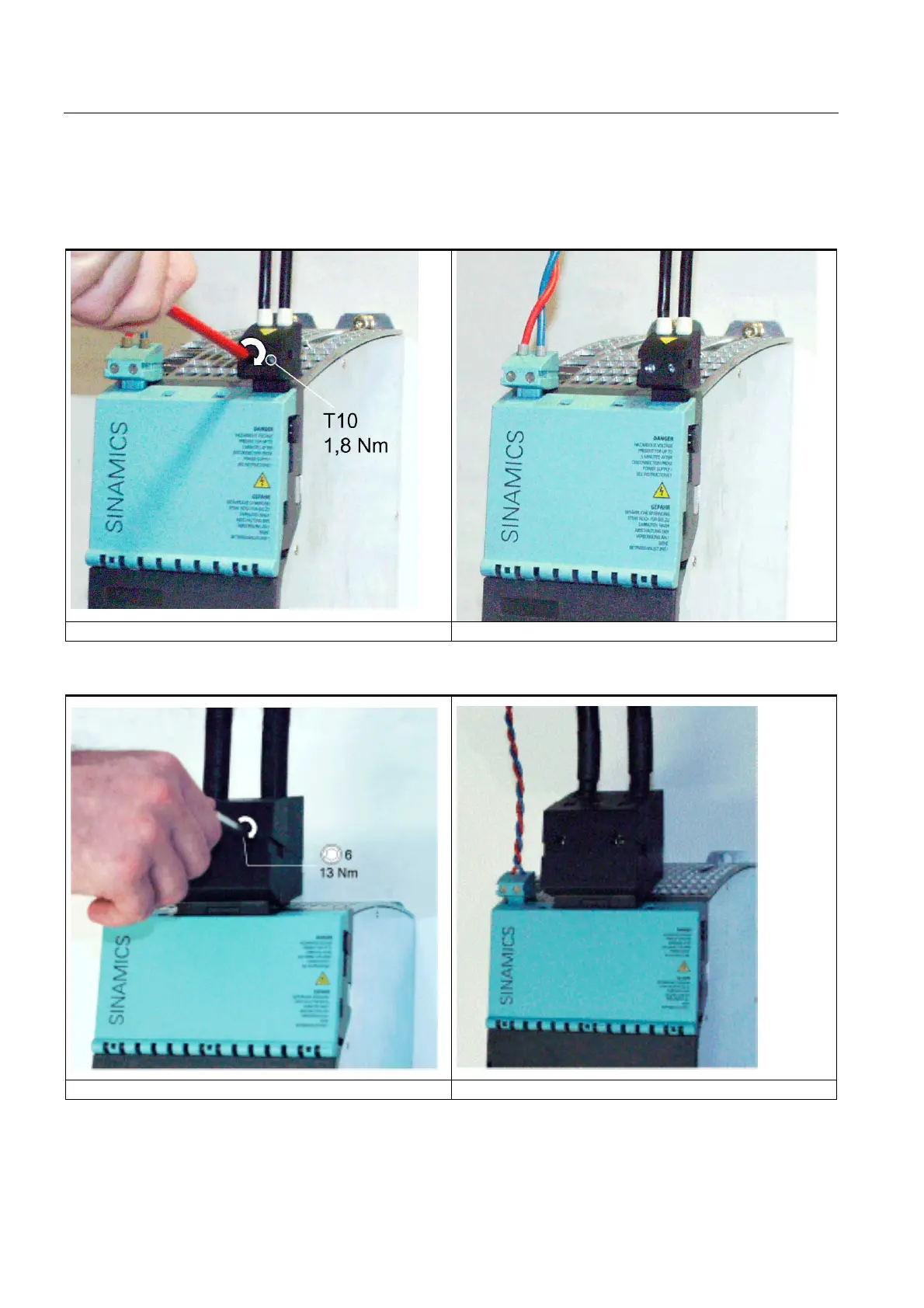

Table 6-10 Connecting the DC link supply adapter for 50 mm and 100 mm modules
Connect the cable to the DC link supply adapter. Electrical connection of the DC link supply adapter.
Table 6-11 Connecting the DC link supply adapter for 150 mm, 200 mm, and 300 mm modules
Connect the cable to the DC link supply adapter. Electrical connection of the DC link supply adapter.

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
