6.2 DC link supply adapter
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-21
6.2.4 Dimension Drawings

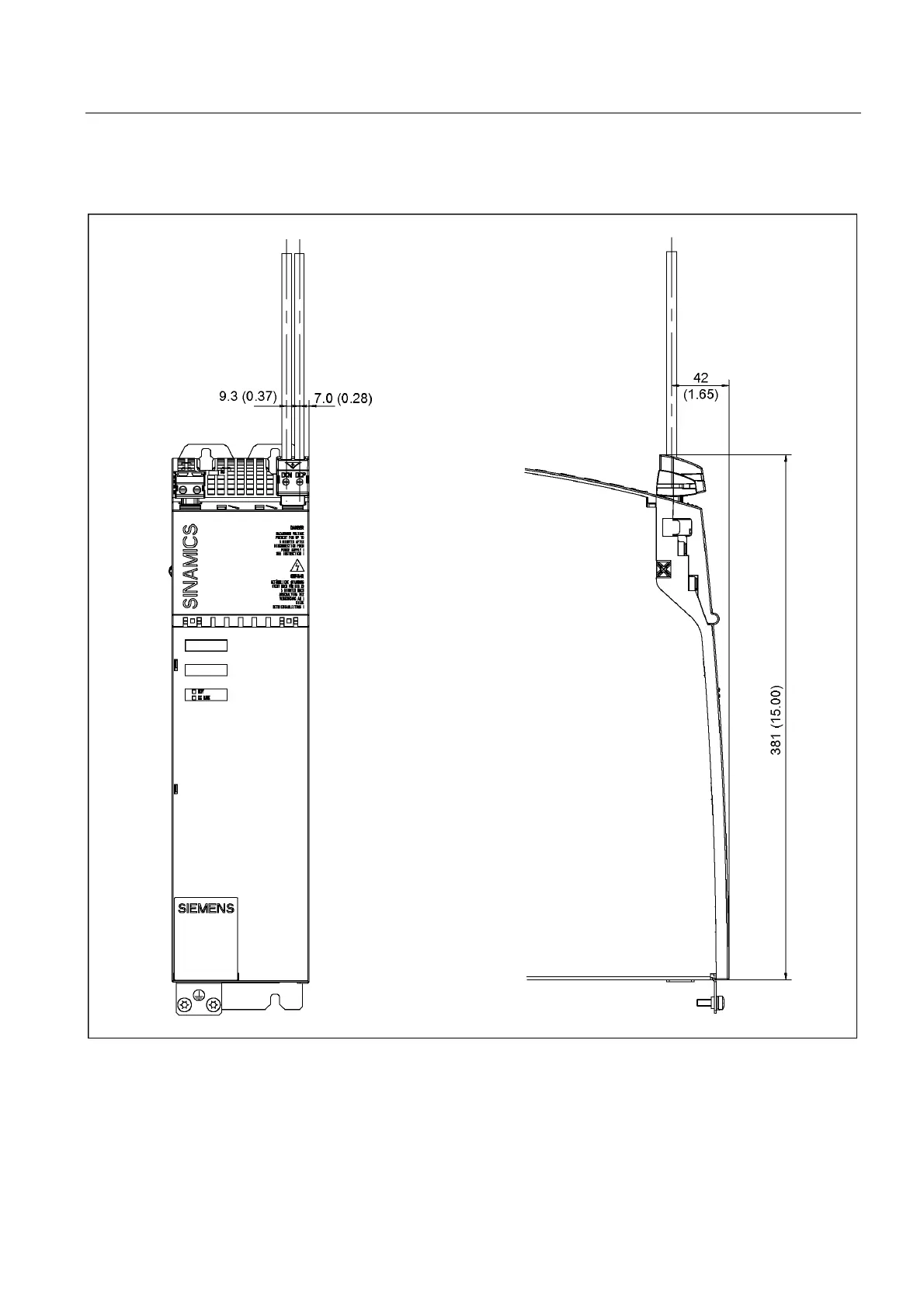

Figure 6-12 Dimension drawing of 100 mm module with DC link supply adapter for 0.5 mm² to 10 mm²
