Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-27
3.3.3.4 X200-X202 DRIVE-CLiQ interfaces

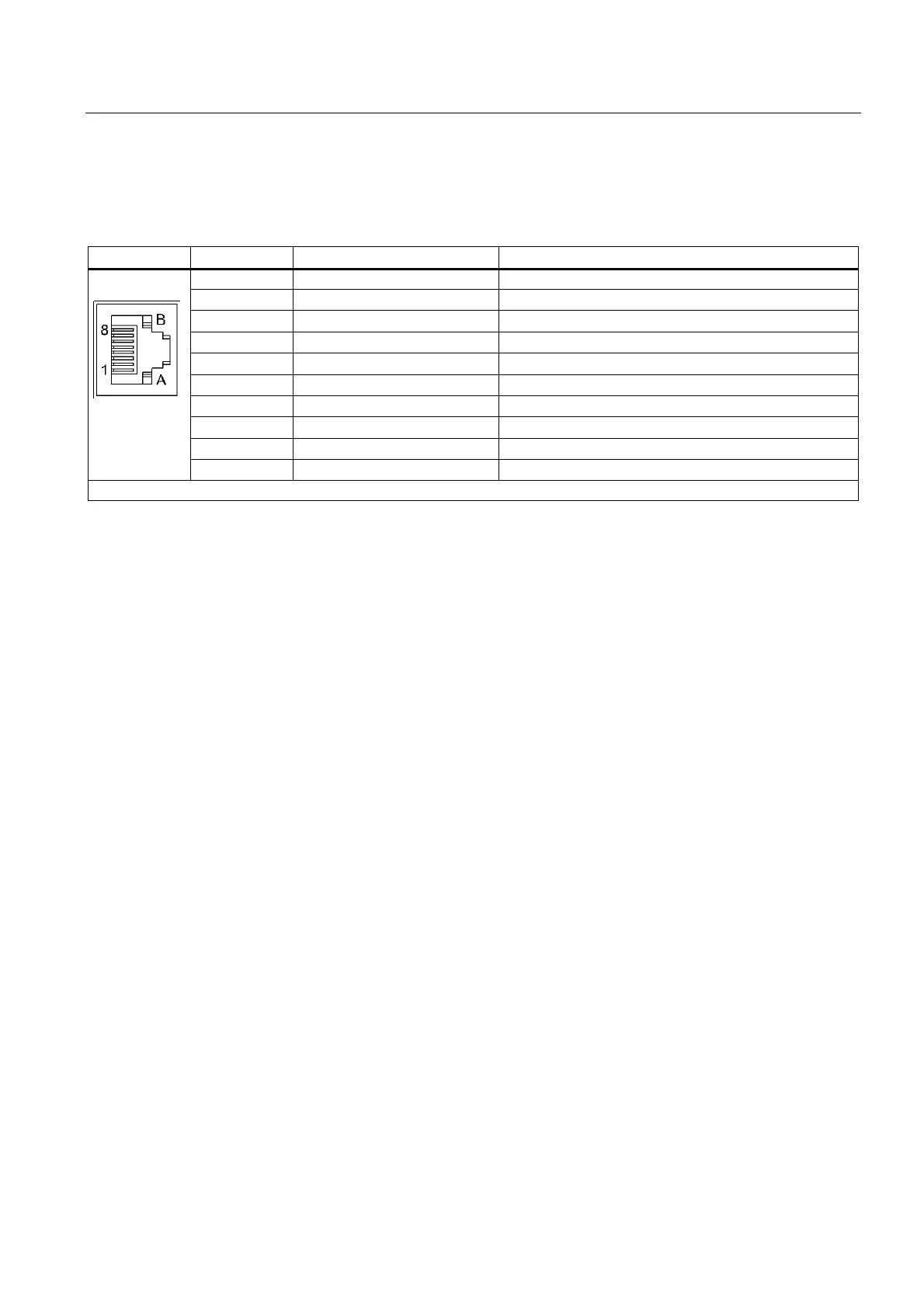

Table 3-13 DRIVE-CLiQ interface X200-X202
PIN Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) 24 V power supply
B GND (0 V) Electronic ground
Blanking plate for DRIVE-CLiQ interface: Molex, order number: 85999-3255
