Siemens SINAMICS Series Equipment Manual

Cabinet Configuration and EMC Booksize
7.7 Cooling
Equipment Manuel for Booksize Power Modules
7-38 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
7.7.2 Information about ventilation
The SINAMICS equipment is ventilated separately by means of integrated fans and is in
some cases cooled by means of natural convection.
The cooling air must flow through the components vertically from bottom (cooler region) to
top (region heated by operation).
If filtered fans, heat exchangers, or air conditioners are used, you must ensure that the air is
flowing in the right direction. You must also ensure that the warm air can escape at the top.
A ventilation clearance of at least 80 mm above and below must be observed.
Note
Cables must not be routed on the modules; the ventilation grilles must not be covered.
Cold air must not be allowed to blow directly onto electronic equipment.
FDELQHWBYHQWLODWLRQYVG
(OHFWULFDOFDELQHW
&RROLQJXQLW

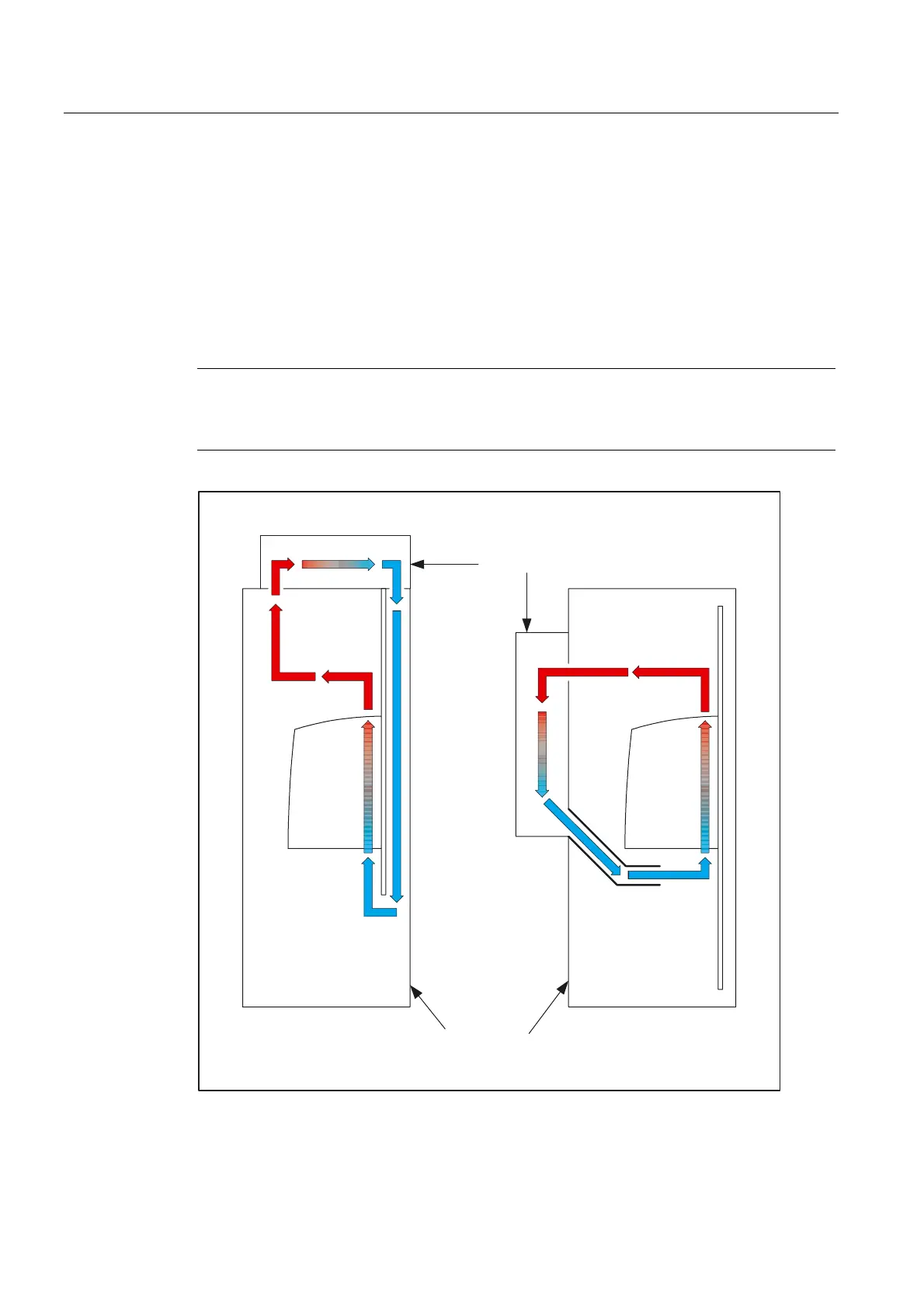

Figure 7-18 Examples of cabinet ventilation

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
