Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.2 Active Line Modules with Internal Air Cooling
Equipment Manuel for Booksize Power Modules
3-12 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.2.4 Dimension drawing
%
 










E

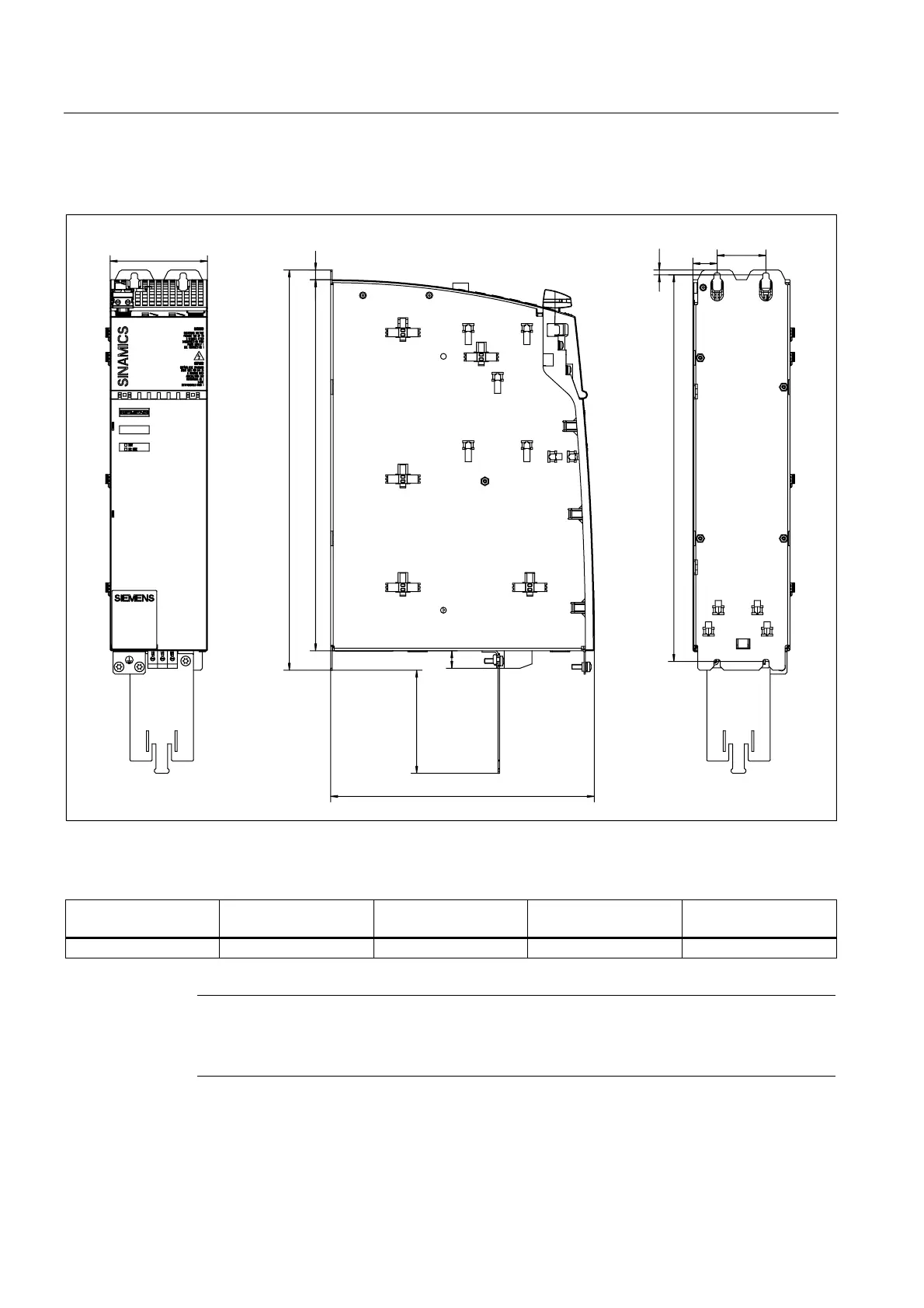

Figure 3-4 Dimension drawing of Active Line Module with internal air cooling (16 kW)
Table 3-7 Dimensions of Active Line Module with internal air cooling
Active Line Module
type
Order number W [mm] (inches) w [mm] (inches) h [mm] (inches)
16 kW 6SL3130-7TE21-6AAx 100 (3.94) 50 (1.97) 18 (0.71)
Note
The shielded terminal plate is part of the scope of supply of a 100 mm Line Module.
More information can be found in "Accessories".

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
