Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.5 Smart Line Modules (16 kW and 36 kW) with internal air cooling
Equipment Manuel for Booksize Power Modules
3-68 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.5.4 Dimension Drawings
%
 










E

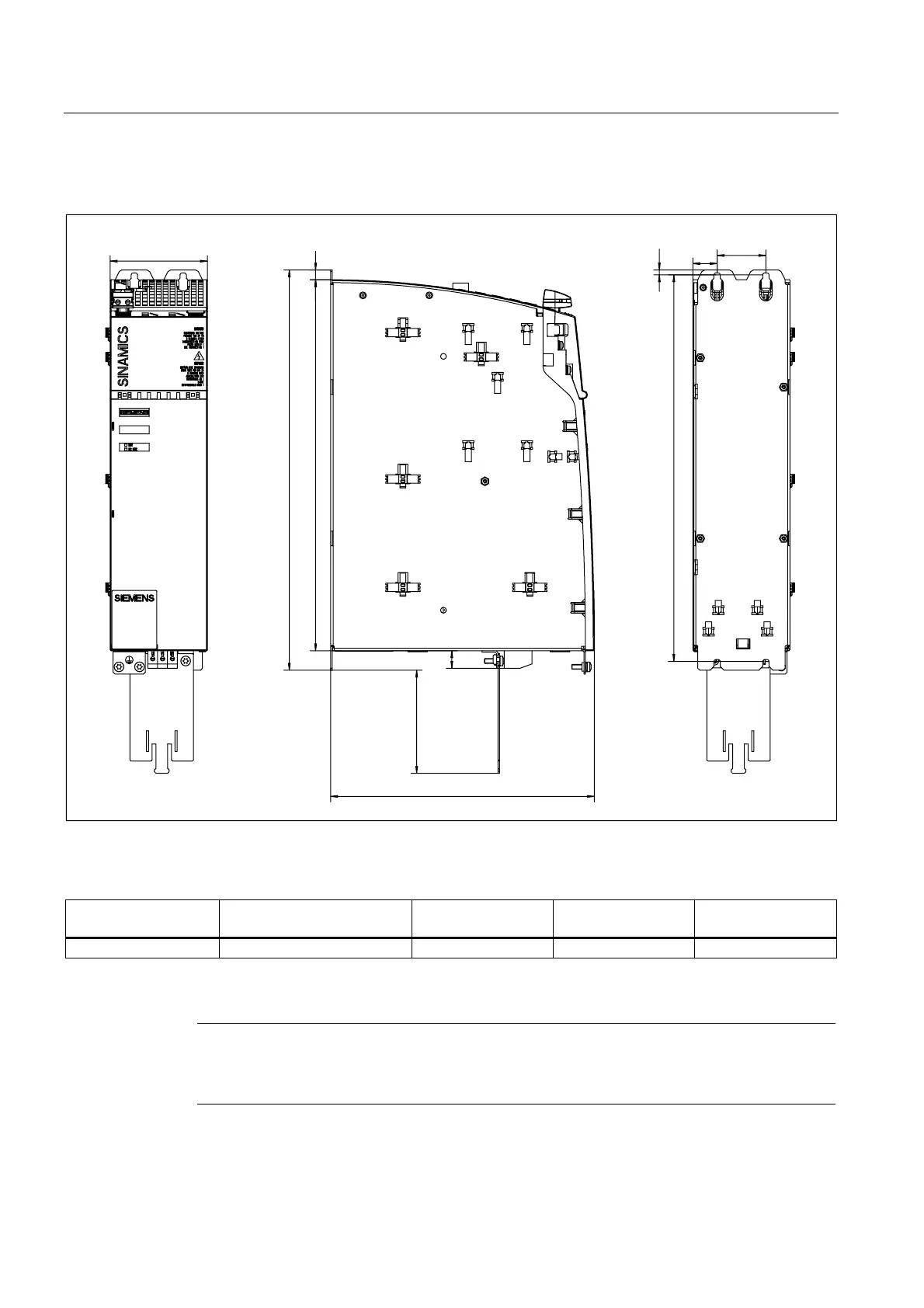

Figure 3-36 Dimension drawing of the Smart Line Module (16 kW) with internal air cooling
Table 3-34 Dimensions of Smart Line Module with internal air cooling
Smart Line Module
type
Order number W [mm] (inches) w [mm] (inches) h [mm] (inches)
16 kW 6SL3130-6TE21-6ABx 100 (3.94) 50 (1.97) 18 (0.71)
Note
The shielded terminal plate is part of the scope of supply of a 100 mm Line Module.
Further details can be found in "Accessories".

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
