Siemens SINAMICS Series Equipment Manual

Line Connection Booksize
2.4 Wideband Line Filter for Active Line Modules
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2-13
2.4.4 Dimension drawing

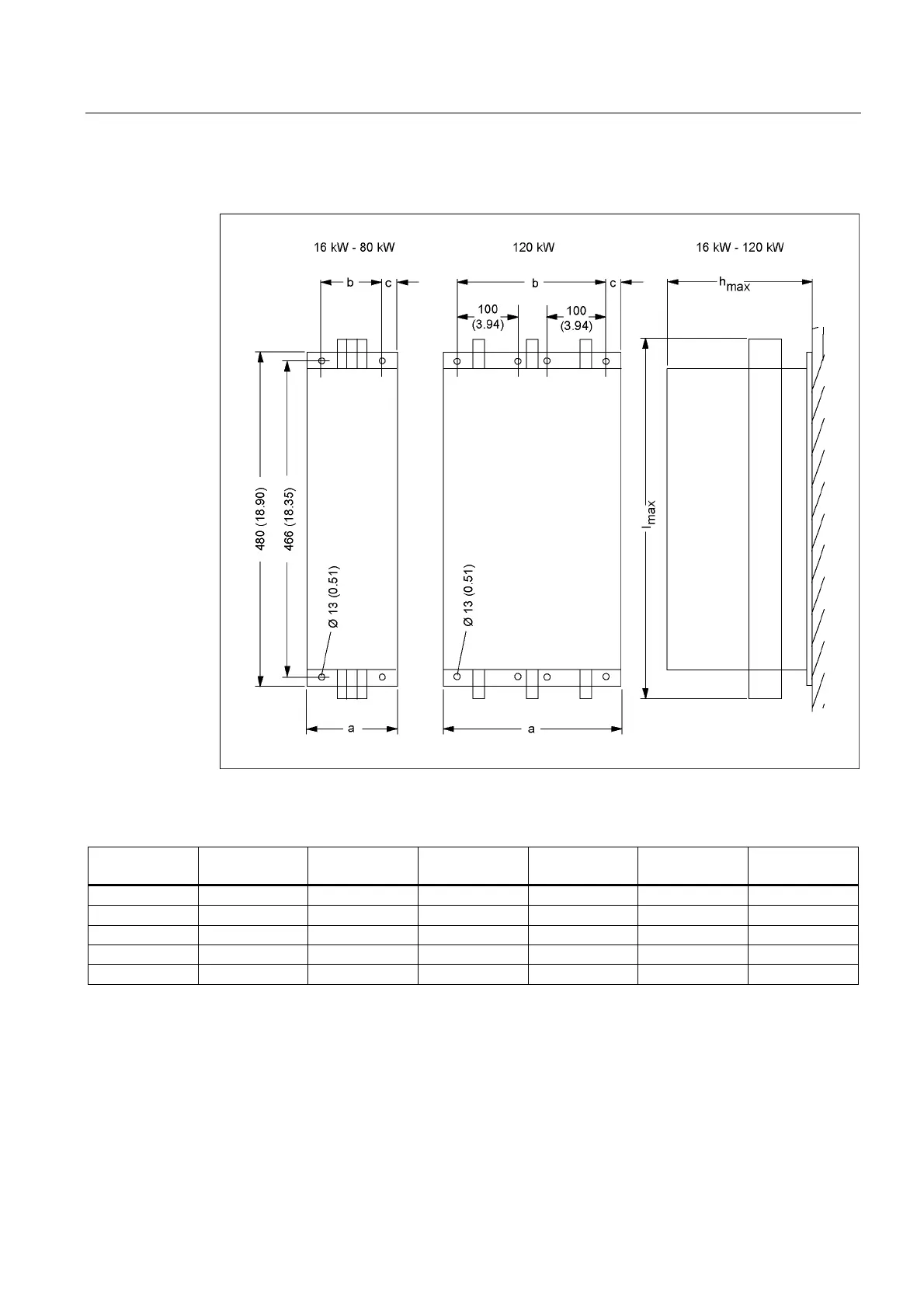

Figure 2-5 Dimension drawing: Wideband Line Filter for Active Line Modules
Table 2-6 Dimensions: Wideband Line Filter
For Active Line
Modules
Order number
6SL3000-
a [mm]
(inches)
b [mm]
(inches)
c [mm]
(inches)
h
max
[mm]
(inches)
l
max
[mm]
(inches)
16 kW 0BE-21-6AAx 130 (5.12) 100 (3.94) 15 (0.59) 150 (5.91) 489 (19.25)
36 kW 0BE-23-6AAx 130 (5.12) 100 (3.94) 15 (0.59) 245 (9.65) 526 (20.71)
55 kW 0BE-25-5AAx 130 (5.12) 100 (3.94) 15 (0.59) 260 (10.24) 526 (20.71)
80 kW 0BE-28-0AAx 200 (7.87) 150 (5.91) 25 (0.98) 260 (10.24) 539 (21.22)
120 kW 0BE-31-2AAx 300 (11.81) 250 (9.84) 25 (0.98) 260 (10.24) 530 (20.87)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
