Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.4 Smart Line Modules (5 kW and 10 kW) with internal air cooling
Equipment Manuel for Booksize Power Modules
3-50 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.4.3.5 X22 terminals: smart line module

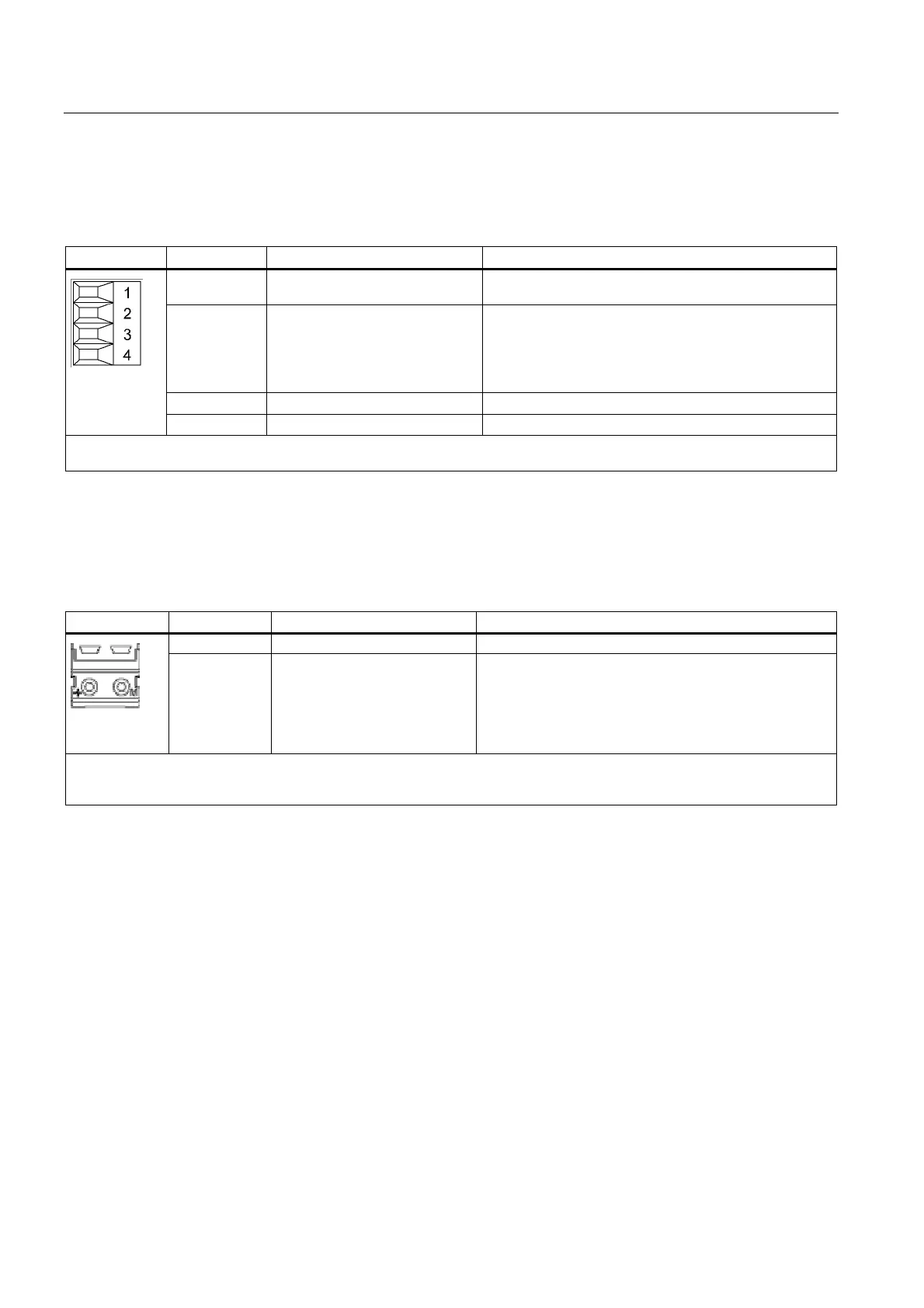

Table 3-23 Terminal block X22
Terminal Name Technical specifications
1 24 V power supply Electronics power supply for controlling digital inputs
X22.2 and 3.
2 DI: Disable Regeneration Deactivate feedback
No power is supplied back to the network from the DC
link. The regenerative energy of the motors may have
to be reduced using a combination of the Braking
Module and braking resistor.
3 DI: Reset Reset faults (positive edge)
4 Ground Electronic ground
Max. connectable cross-section: 1.5 mm
2
Type: Screw terminal 1 (see Connection Methods)
3.4.3.6 X24 24 V terminal adapter
Table 3-24 Terminal block X24
Terminal Name Technical specifications
+ 24 V power supply 24 V DC supply voltage
M Ground Electronic ground
The 24 V terminal adapter is supplied as standard
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (see Connection Methods)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
