Siemens SINAMICS Series Equipment Manual

DC link components Booksize
5.4 Control Supply Module (CSM)
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
5-19
5.4.3 Interface description
5.4.3.1 Overview
X1
Protective cover
LEDs
Release for
protective cover
Protective earth
connection
M5 / 3Nm
Electronics power
supply
DC link
busbars
Line connection
Rating plate
Spacer
X24
24 V terminal adapter

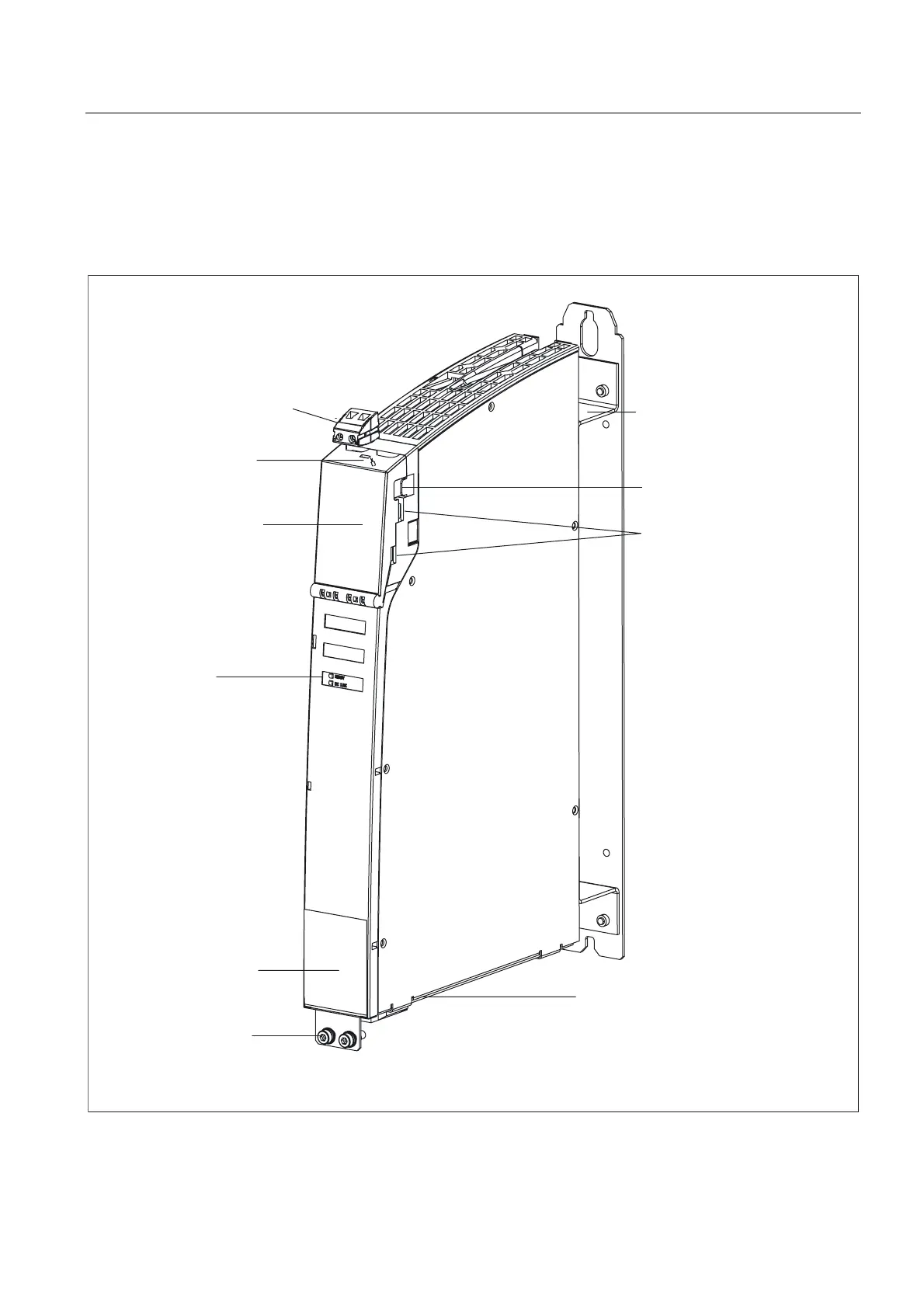

Figure 5-10 Interface description: control supply module
