Siemens SINAMICS Series Equipment Manual

Options
6.2 DC link supply adapter
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-17

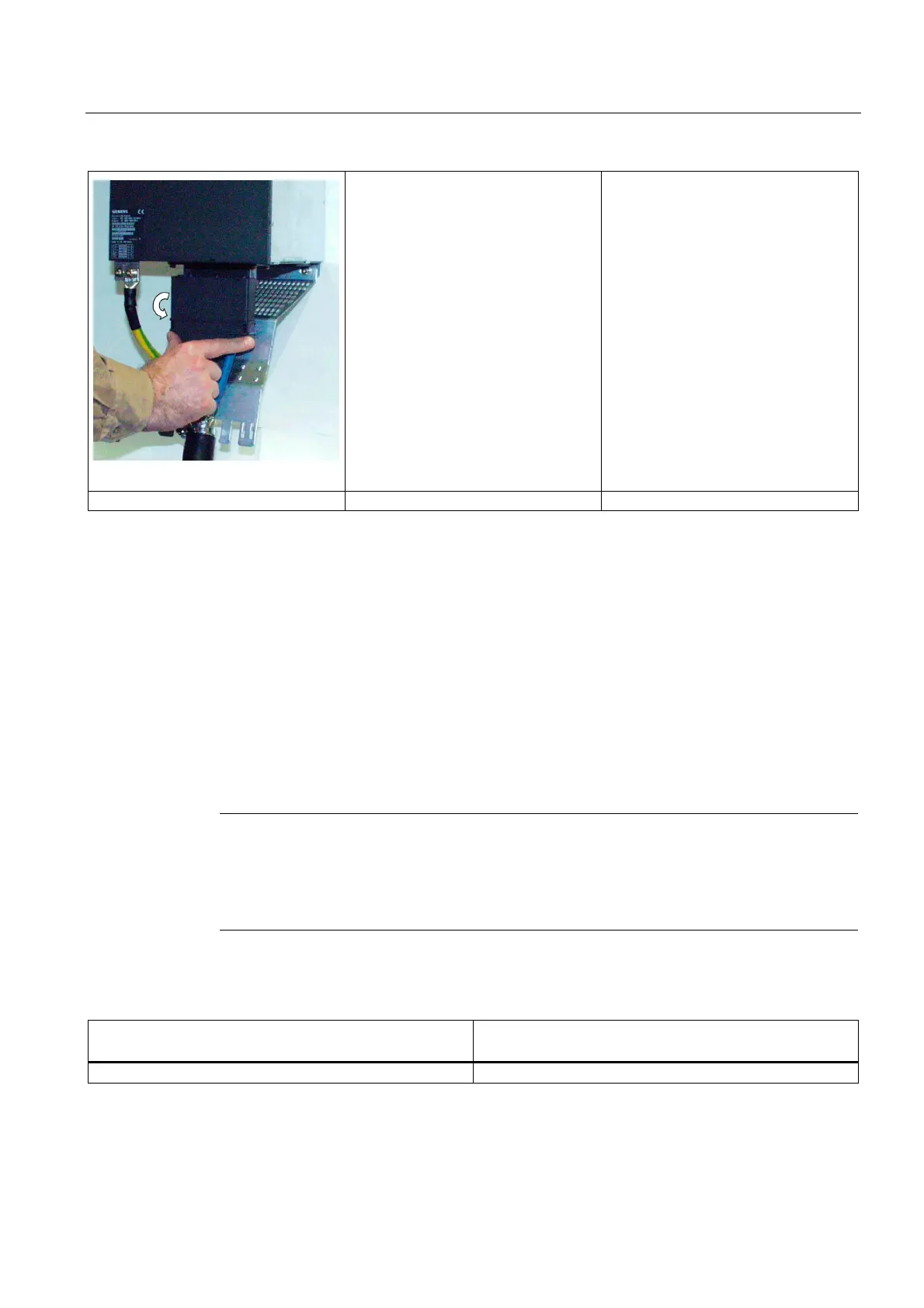

Close the cover of the terminal block.
6.2 6.2 DC link supply adapter
6.2.1 Description
The DC link supply adapter supplies the DC link voltage directly. With a direct supply, each
module is connected to the DC link separately. The internal DC link busbar is not used here.
The connection cables must be fused accordingly.
Note
When a DC link supply adapter and DC busbars are used, the limit values for radio
interference emission to EN 55011 cannot be observed.
It is not possible to use the DC link supply adapter in conjunction with internal DC link
busbars.
Table 6-6 The DC link supply adapter is available in two sizes.
for Line/Motor Modules with a width of
50 mm and 100 mm
for Line/Motor Modules with a width of
150 mm, 200 mm, 300 mm
Screw terminals (4 to 10 mm²) Screw terminals (35 to 95 mm²)
