Siemens SINAMICS Series Equipment Manual

Options
6.5 DRIVE-CLiQ Coupling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-39
6.5.5 Installation
&RQWDFWVXUIDFHV
RU01P
RU01P



s
s
s s




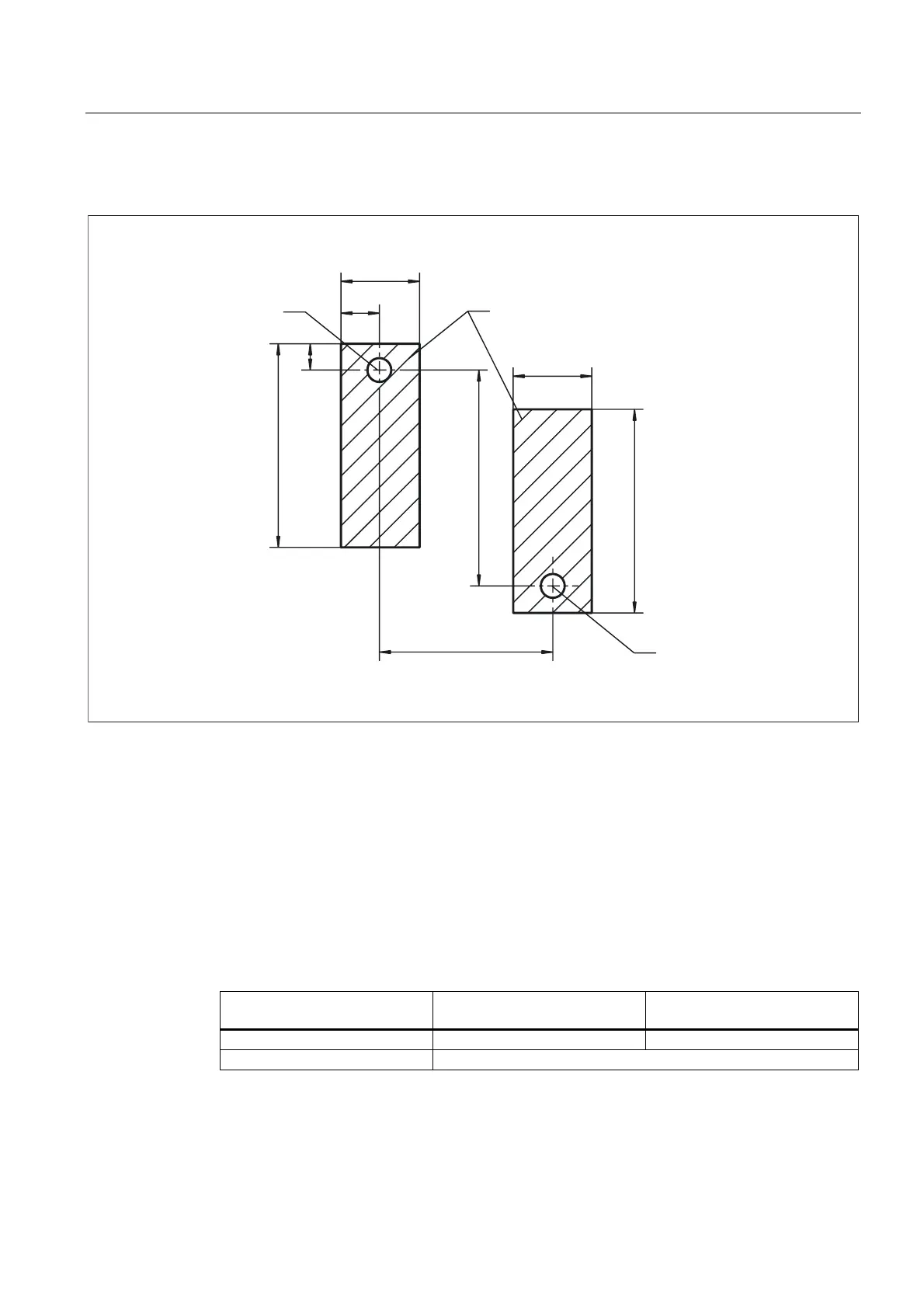

Figure 6-22 Hole drilling template for installation:
1. Fit the DRIVE-CLiQ coupling in accordance with the hole drilling template on the
mounting surface.
2. Remove the protective caps on the DRIVE-CLiQ Coupling.
3. Plug the DRIVE-CLiQ connector into both ends of the DRIVE-CLiQ coupling.
6.5.6 Technical specifications
Table 6-17 Technical Specifications
DRIVE-CLiQ Coupling
6FX2003-0DC1x
Unit
Weight kg 0.14
Degree of protection IP67-IP67
