2.5 Line filters for Smart Line Modules
Equipment Manuel for Booksize Power Modules
2-18 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2.5.4 Dimension Drawings

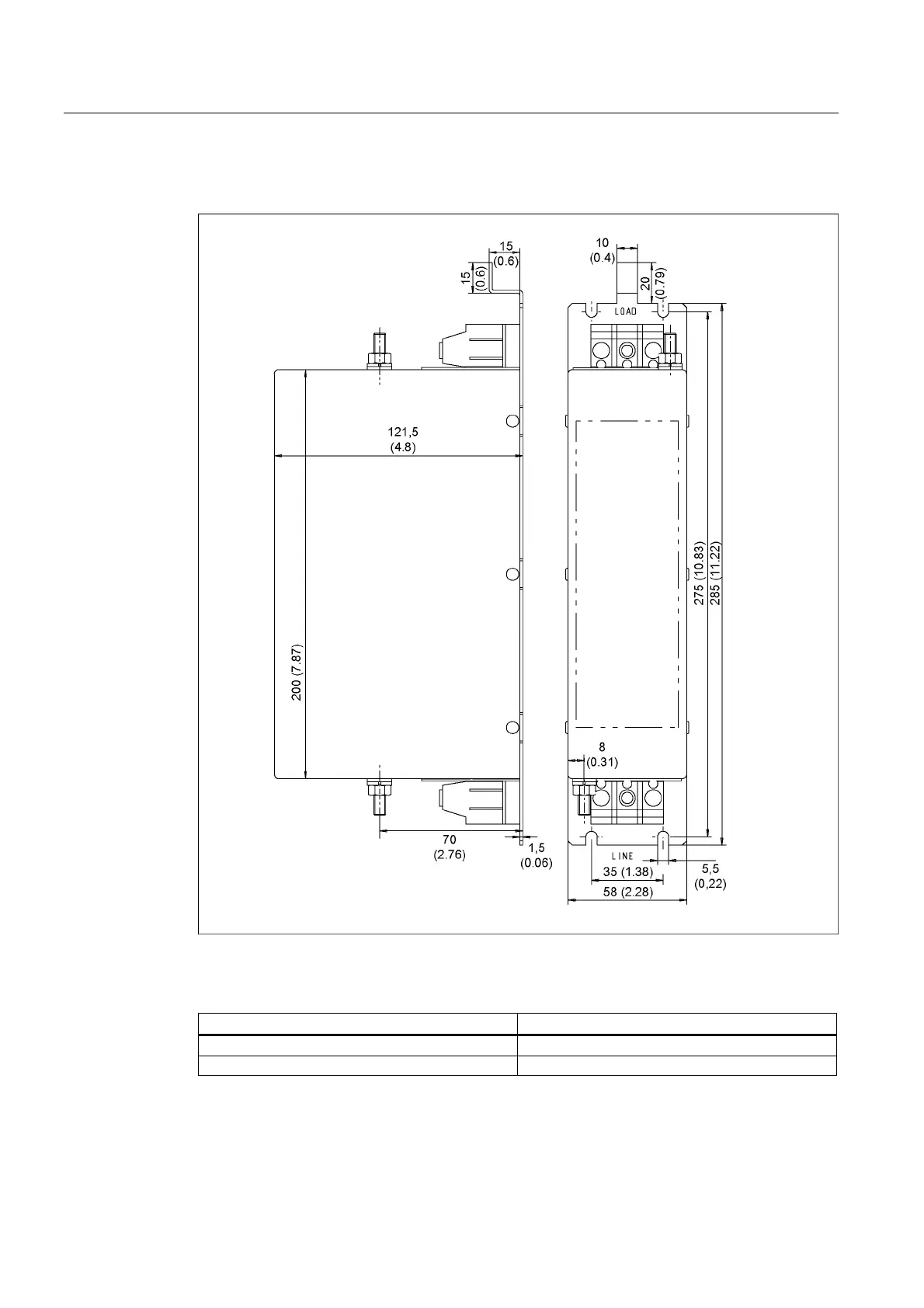

Figure 2-7 Dimension drawing: line filter for Smart Line Modules (5 and 10 kW)
Table 2-9 Line filters for Smart Line Modules
Line filters for Smart Line Modules Order number
5 kW 6SL3000-0HE15-0AAx
10 kW 6SL3000-0HE21-0AAx
