Siemens SINAMICS Series Equipment Manual

Line Connection Booksize
2.6 Line reactors for Active Line Modules
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2-23
2.6.4 Dimension drawing

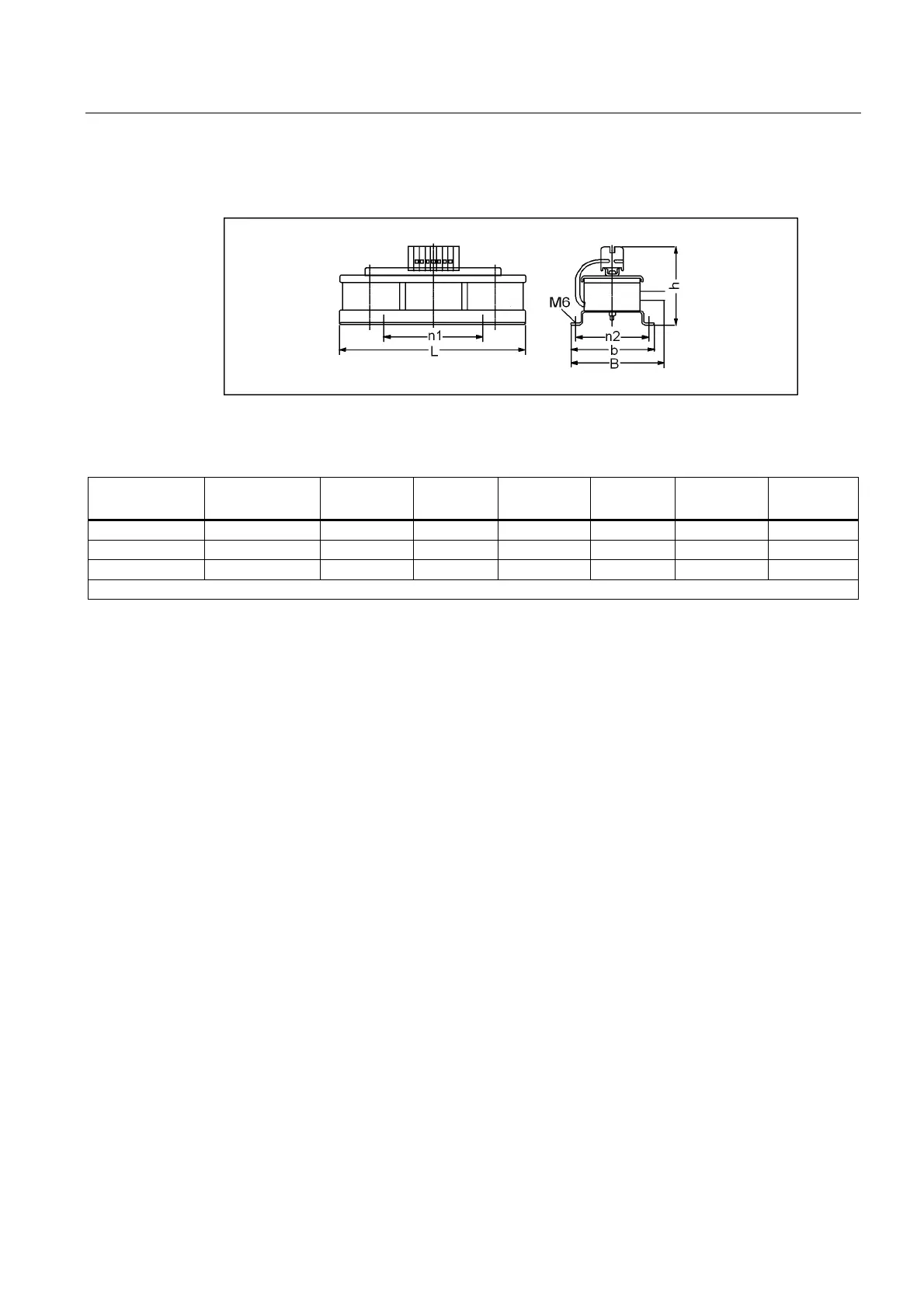

Figure 2-10 Dimension drawing: line reactor for Active Line Modules up to 55 kW
Table 2-13 Dimensions of the line reactor for Active Line Modules
Order number
6SN1111-
L [mm]
(inches)
W [mm]
(inches)
h [mm]
(inches)
b [mm]
(inches)
n
1
[mm]
1)
(inches)
n
2
[mm]
1)
(inches)
16 kW 0AA00-0BA1 330 (12.99) 150 (5.91) 145 (5.71) 150 (5.91) 175 (6.89) 136 (5.35)
36 kW 0AA00-0CA1 330 (12.99) 150 (5.91) 230 (9.06) 150 (5.91) 175 (6.89) 136 (5.35)
55 kW 0AA00-0DA1 330 (12.99) 150 (5.91) 280 (11.02) 150 (5.91) 175 (6.89) 136 (5.35)
1) Dimensions n1 and n2 correspond to the drill hole spacing
