Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
3-30 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.3.4 Dimension Drawings

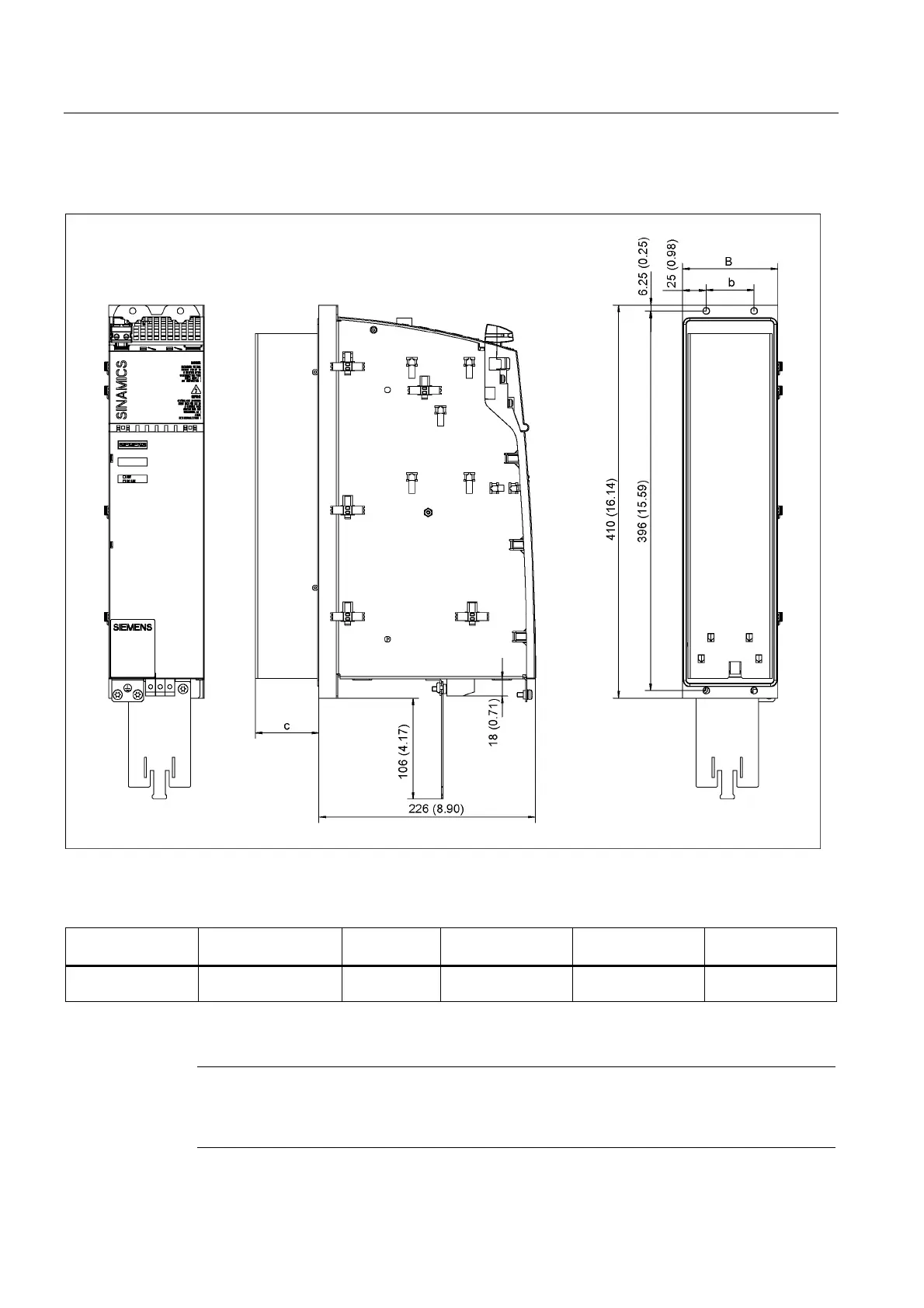

Figure 3-14 Dimension drawing of Active Line Module with external air cooling (16 kW)
Table 3-17 Dimensions of Active Line Module with external air cooling (16 kW)
Line Module type Order number W [mm]
(inches)
w [mm] (inches) c [mm] (inches) h [mm] (inches)
16 kW 6SL3130-7TE21-
6AAx
100 (3.94) 50 (1.97) 66.5 (2.62) 18 (0.71)
Note
The shielded terminal plate is part of the scope of supply of a 100 mm Line Module.
More information can be found in "Accessories".
