Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-31

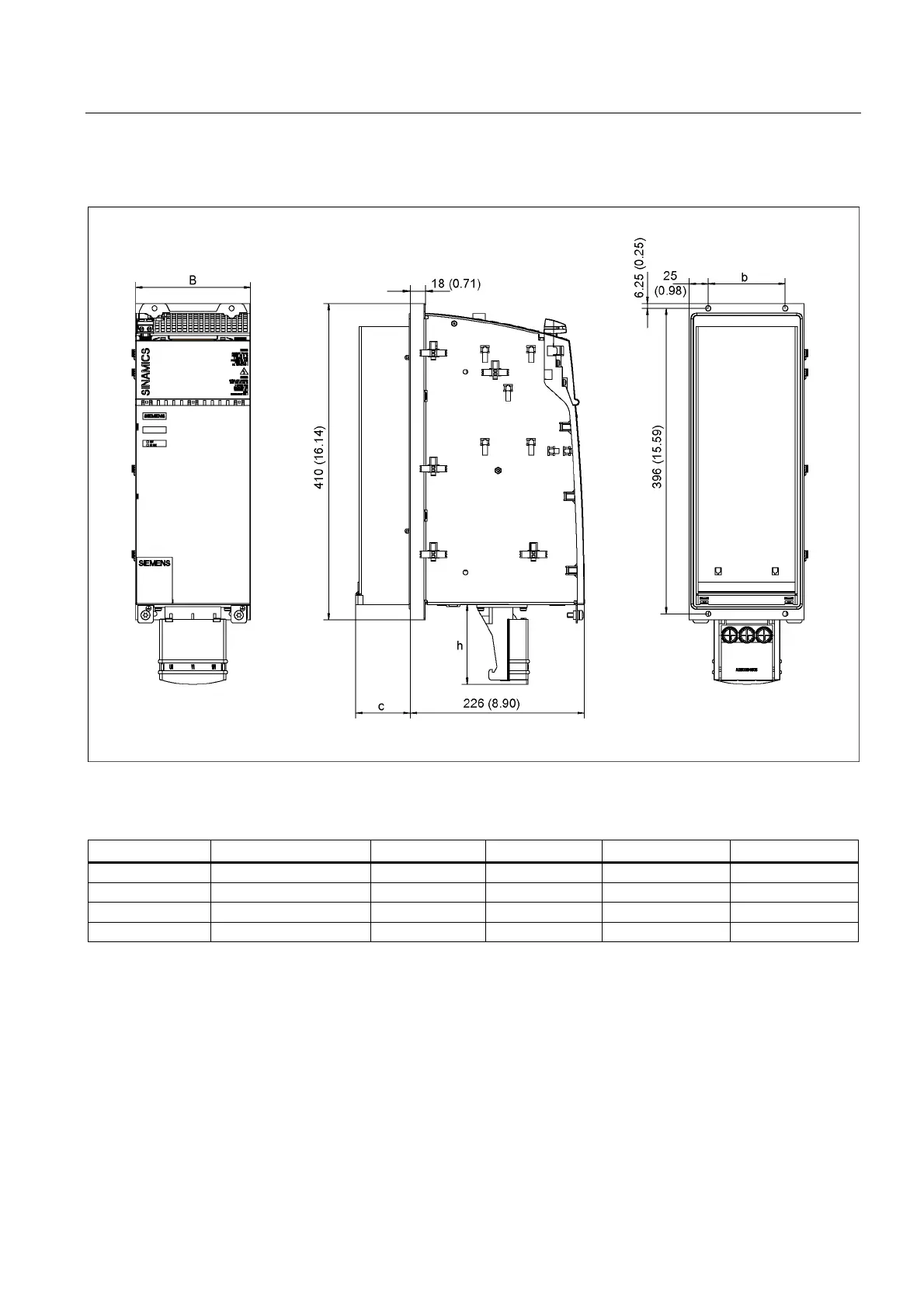

Figure 3-15 Dimension drawing of active line with external air cooling (36 kW, 55 kW, 80 kW, and 120 kW)
Table 3-18 Dimensions of Active Line Modules with external air cooling (36 kW, 55 kW, 80 kW, and 120 kW)
Line Module type Order number W [mm] (inches) w [mm] (inches) h [mm] (inches) c [mm] (inches)
36 kW 6SL3131-7TE23-6AAx 150 (5.91) 100 (3.94) 105 (4.13) 71 (2.80)
55 kW 6SL3131-7TE25-5AAx 200 (7.87) 150 (5.91) 105 (4.13) 92 (3.62)
80 kW 6SL3131-7TE28-0AAx 300 (11.81) 250 (9.84) 105 (4.13) 82 (3.23)
120 kW 6SL3131-7TE31-2AAx 300 (11.81) 250 (9.84) 105 (4.13) 82 (3.23)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
