Cabinet Configuration and EMC Booksize
7.6 Connection methods
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
7-27
7.6.2 Motor connector

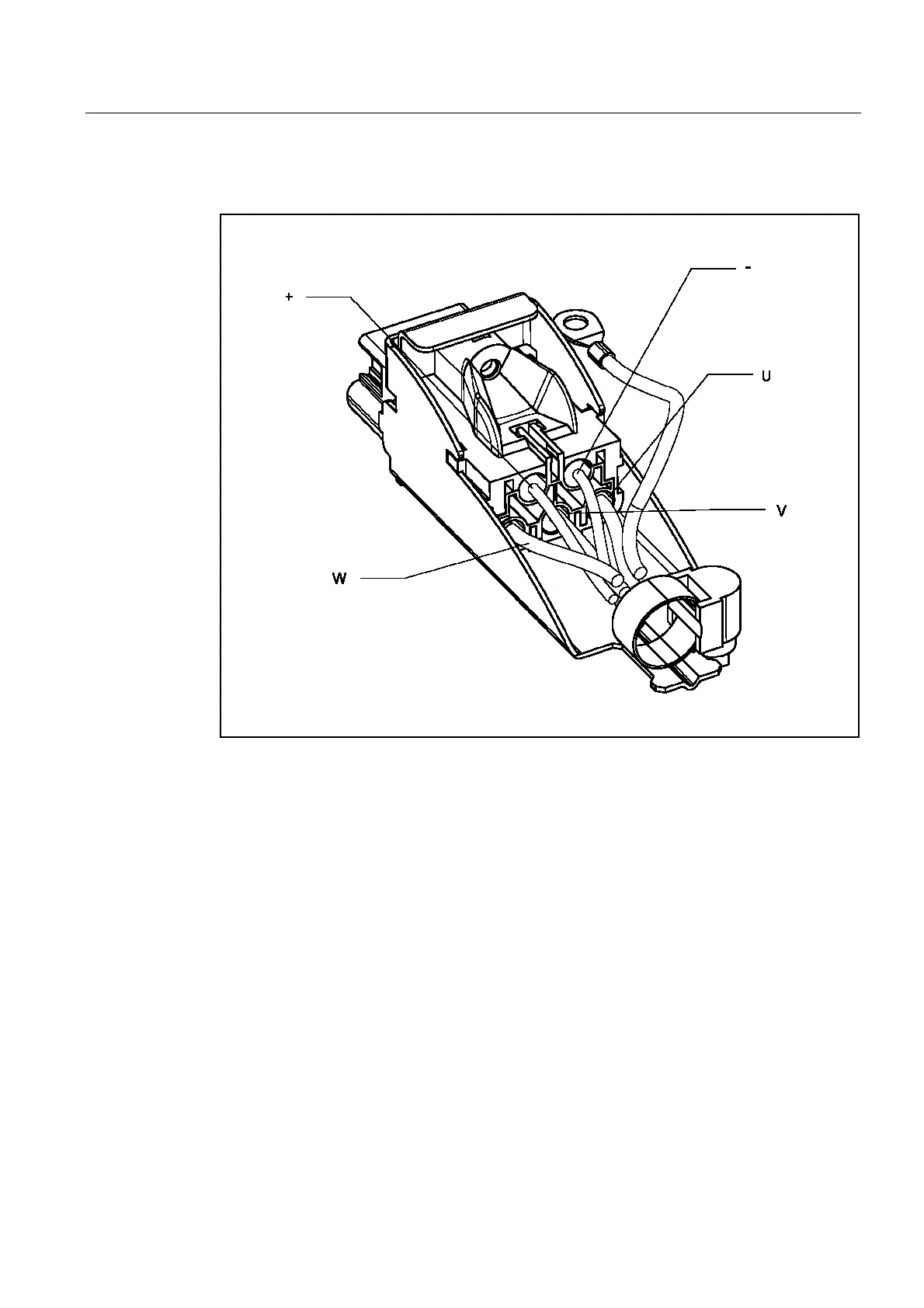

Figure 7-8 Motor Connector
The figure below shows how to remove the motor connector using a pair of engineer's pliers,
for example, to pull the cable through narrow cable bushings.
