Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.6 Smart Line Modules (5 kW and 10 kW) with external air cooling
Equipment Manuel for Booksize Power Modules
3-84 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.6.4 Dimension Drawing

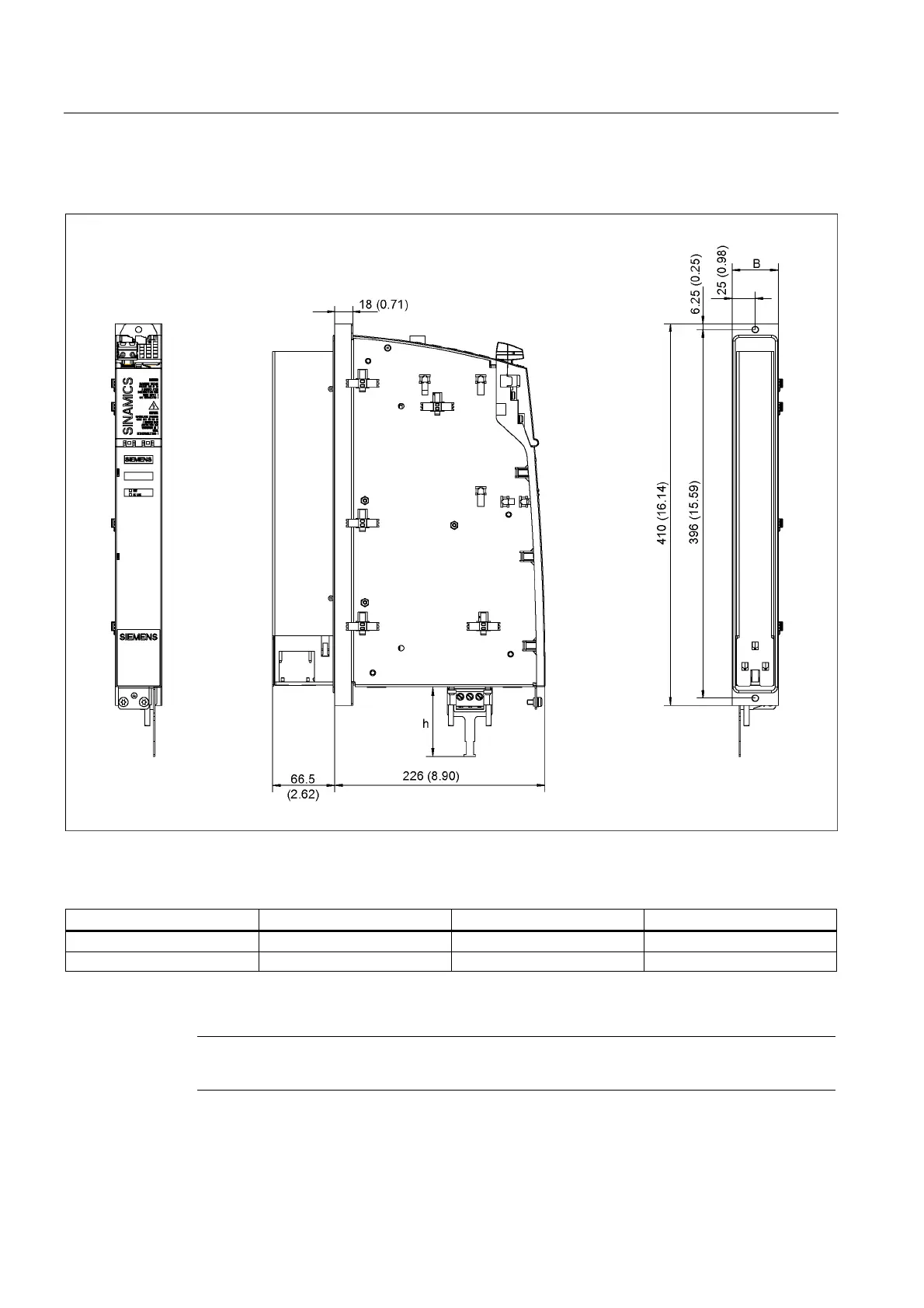

Figure 3-44 Dimension drawing of Smart Line Module (5 kW und 10 kW) with external air cooling
Table 3-42 Dimensions of Smart Line Module (5 kW und 10 kW) with external air cooling
Line Module type Order number W [mm] (inches) h [mm] (inches)
5 kW 6SL3136-6AE15-0AAx 50 (1.97) 75 (2.95)
10 kW 6SL3136-6AE21-0AAx 50 (1.97) 75 (2.95)
Note
The shielded terminal plate is part of the scope of supply of the 50 mm Smart Line Module.
