Siemens SINAMICS Series Equipment Manual

Motor Modules Booksize
4.3 Motor Module with external air cooling
Equipment Manuel for Booksize Power Modules
4-32 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4.3.4 Dimension Drawing

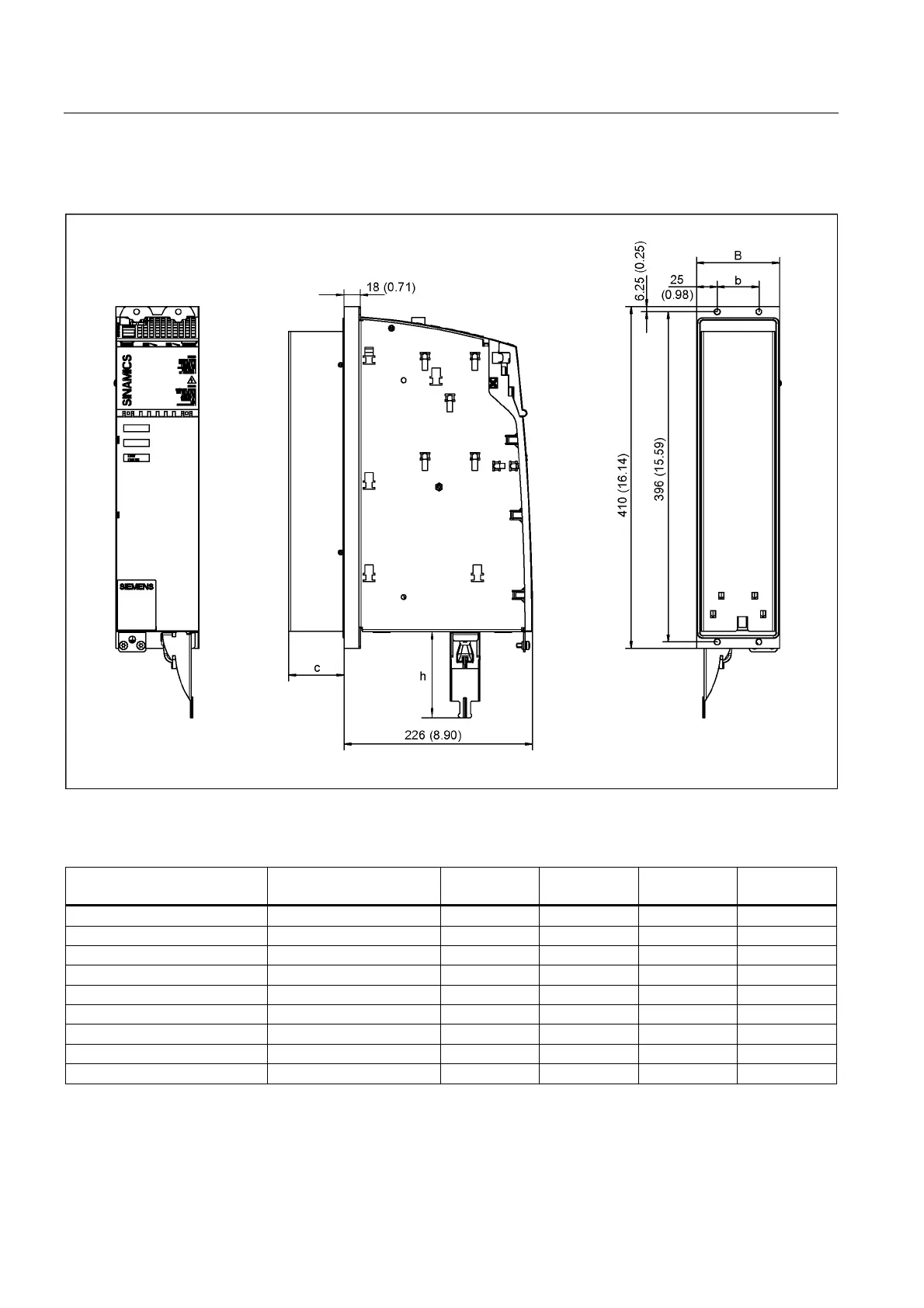

Figure 4-22 Dimension drawing of Motor Module with external air cooling (3 A to 30 A)
Table 4-17 Dimensions of Motor Module with external air cooling (3 A to 30 A)
Motor Module type Order number W [mm]
(inches)
w [mm]
(inches)
c [mm]
(inches)
h [mm]
(inches)
Single Motor Module 3 A 6SL3121-1TE13-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Single Motor Module 5 A 6SL3121-1TE15-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Single Motor Module 9 A 6SL3121-1TE19-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Single Motor Module 18 A 6SL3121-1TE21-8AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Single Motor Module 30 A 6SL3121-1TE23-0AAx 100 (3.94) 50 (1.97) 66.5 (2.62) 89 (3.50)
Double Motor Module 3 A 6SL3121-2TE13-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Double Motor Module 5 A 6SL3121-2TE15-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Double Motor Module 9 A 6SL3121-2TE19-0AAx 50 (1.97) - 66.5 (2.62) 89 (3.50)
Double Motor Module 18 A 6SL3121-2TE21-8AAx 100 (3.94) 50 (1.97) 66.5 (2.62) 89 (3.50)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
