Siemens SINAMICS Series Equipment Manual

Options
6.3 DC link adapter
Equipment Manuel for Booksize Power Modules
6-30 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6.3.4 Dimension Drawing

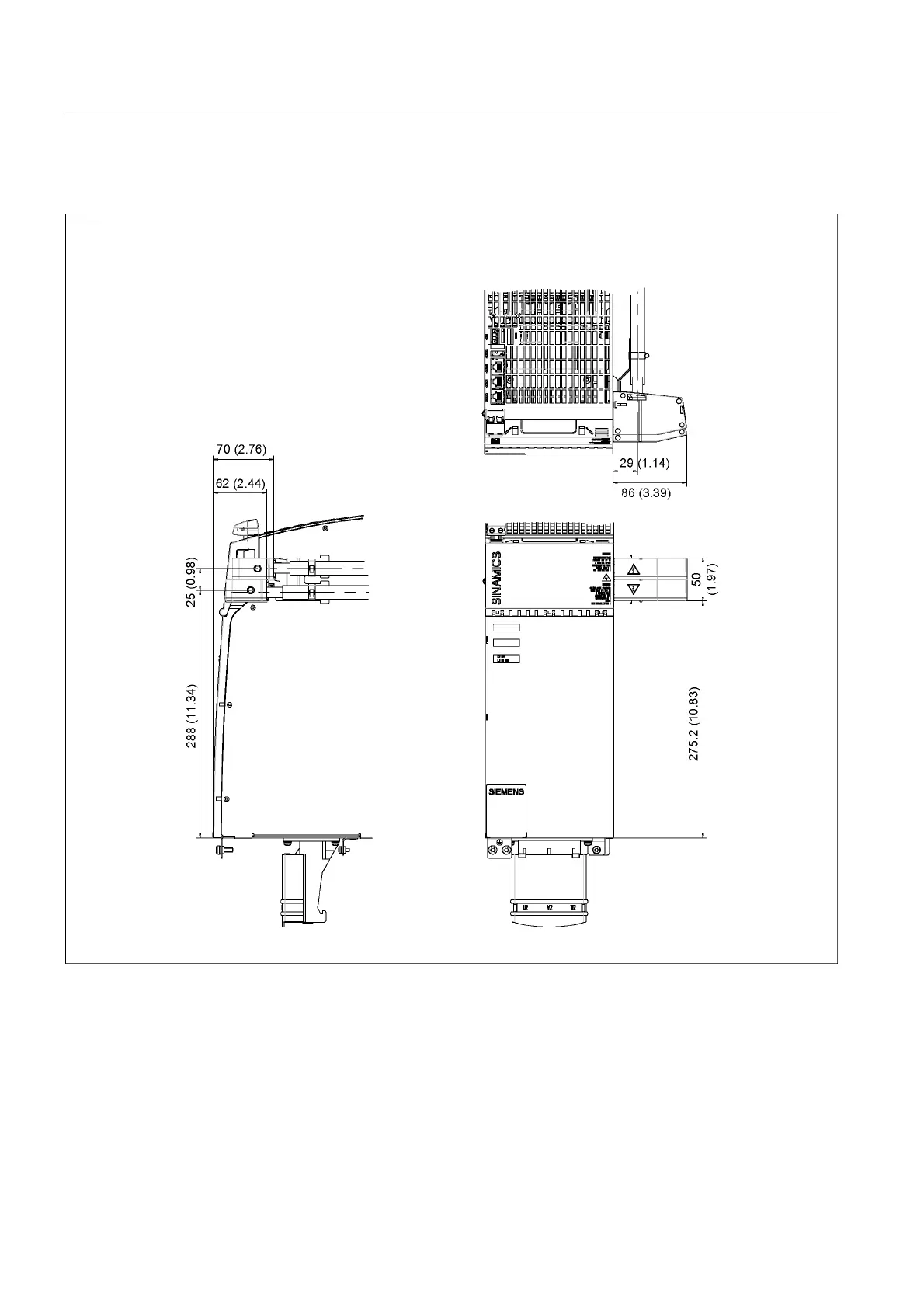

Figure 6-15 Dimension drawing of 150 mm module with DC link adapter for two-row configuration (35 mm² to 95 mm²)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
