Siemens SINAMICS Series - Dimension Drawing

Options
6.4 DRIVE-CLiQ Flanged Coupling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-35
6.4.4 Dimension drawing




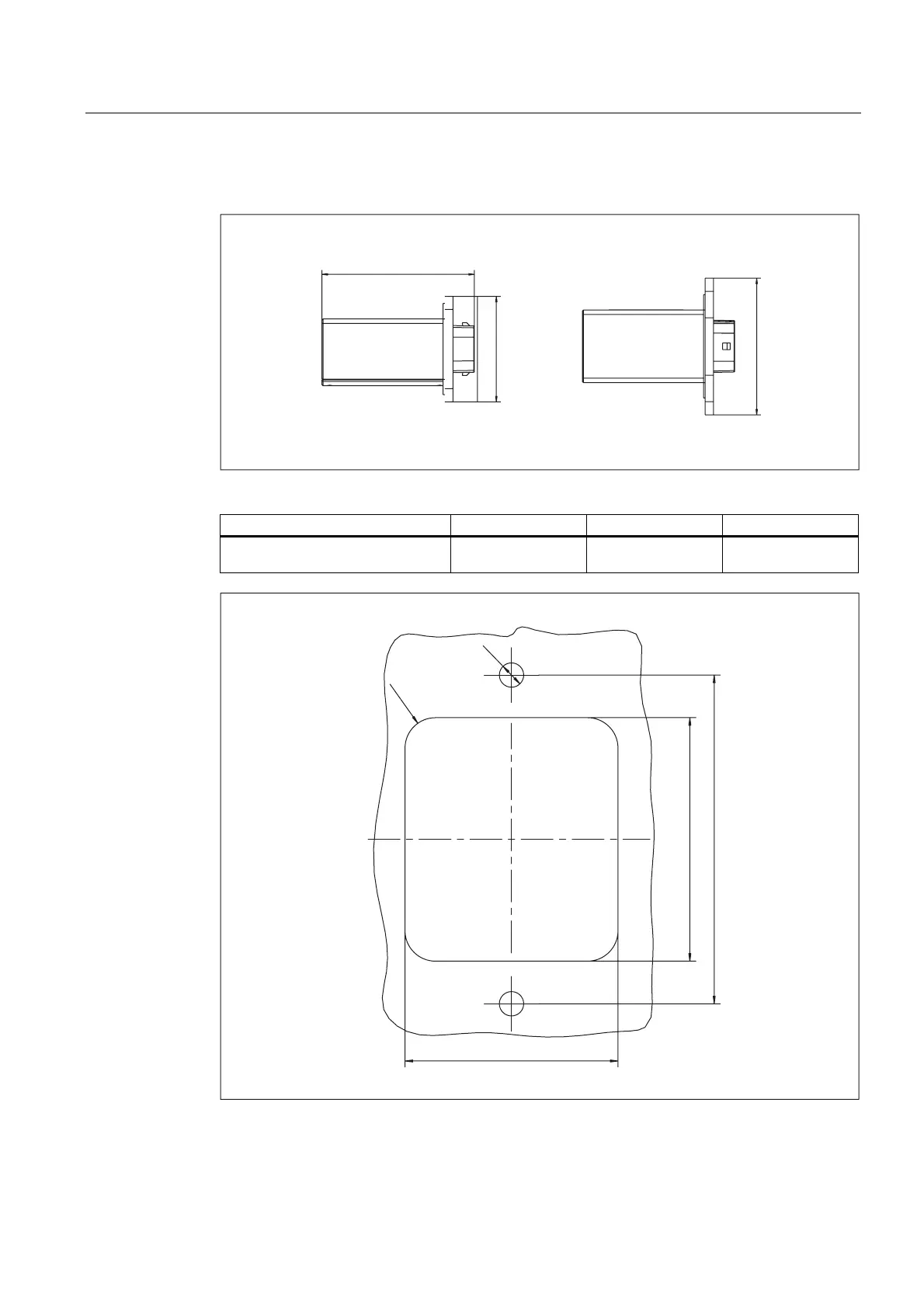

Figure 6-17 Dimension drawing of the DRIVE-CLiQ Flanged Coupling
Accessories B [mm] T [mm] H [mm]
DRIVE-CLiQ Flanged Coupling
(with seal)
69.3 (2.72) 62.2 (2.44) 48 (1.88)



5

Figure 6-18 Cutout for cabinet
