Siemens SINAMICS Series Equipment Manual

Line Connection Booksize
2.3 Basic Line Filter for Active Line Modules
Equipment Manuel for Booksize Power Modules
2-8 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2.3.4 Dimension Drawing
%


s
D
E
3(0[
1P
3(0[
1P
+
K

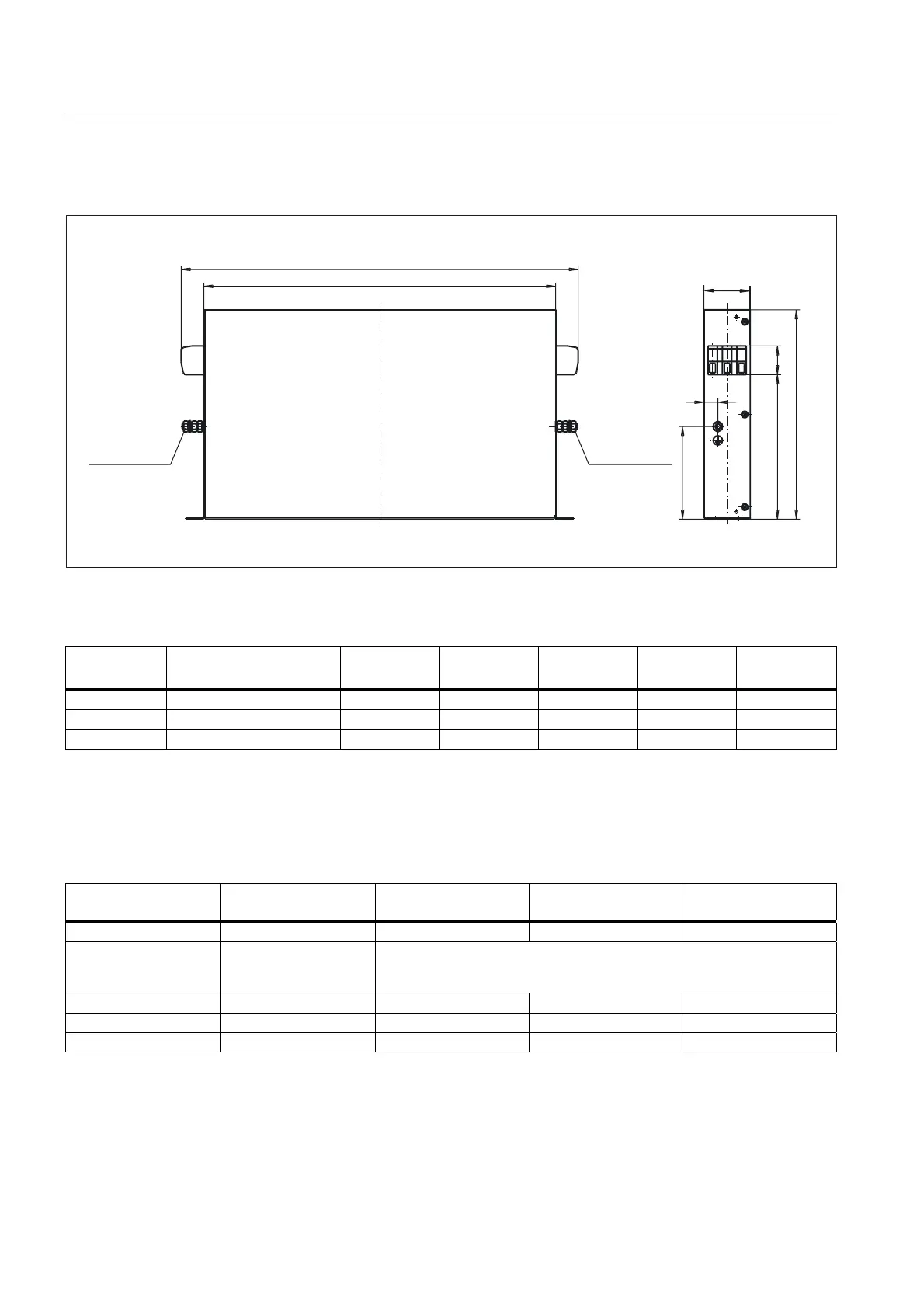

Figure 2-3 Dimension drawing: Basic Line Filter for Active Line Modules (16 kW to 55 kW)
Table 2-3 Dimensions: Basic Line Filter for Active Line Modules
Basic Line
Filter
Order number B [mm]
(inches)
b [mm]
(inches)
a [mm]
(inches)
H [mm]
(inches)
h [mm]
(inches)
16 kW 6SL3000-0BE21-6DAx 429 (16.88) 50 (1.96) 15 (0.59) 156 (6.14) 31 (1.22)
36 kW 6SL3000-0BE23-6DAx 433 (17.07) 75 (2.95) 15 (0.59) 135 (5.31) 68 (2.67)
55 kW 6SL3000-0BE25-5DA0 466 (18.34) 100 (3.93) 15 (0.59) 148 (5.82) 54 (2.12)
2.3.5 Technical Specifications
Table 2-4 Technical specifications: Basic Line Filter for Active Line Modules
6SL3000
unit
0BE21-6DA0 0BE23-6DA0 0BE25-5DA0
Rated power kW 16 36 55
Connection voltage:
Supply voltage
Line frequency
V
AC
Hz
3AC 380 -10% to 3AC 480 +10% (-15% < 1 min)
47 to 63 Hz
Rated current A
AC
36 65 105
Power loss
1
W 16 28 41
Weight kg 5 6.5 11.5
1
For an overview, see the power loss tables in Cabinet Design.
