Line Connection Booksize
2.7 Line reactors for Smart Line Modules
Equipment Manuel for Booksize Power Modules
2-26 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2.7.3 Connection description
The line reactor is rated for a voltage range from 380 V 3AC -10% to 480 V 3AC +10% at
47 Hz to 63 Hz.

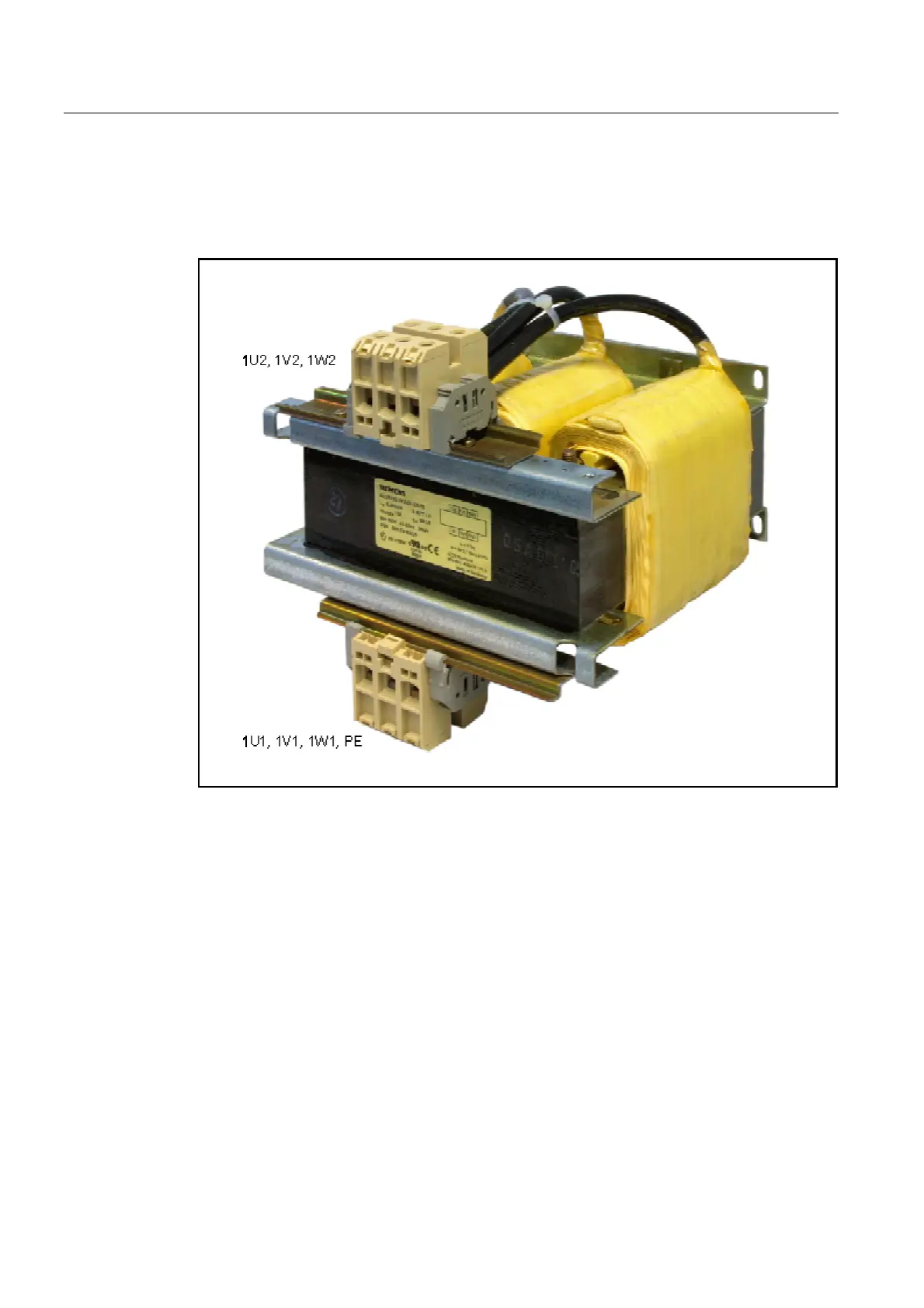

Figure 2-12 Line reactors for Smart Line Modules (example: 36 kW)
