Siemens SINAMICS Series Equipment Manual

Options
6.4 DRIVE-CLiQ Flanged Coupling
Equipment Manuel for Booksize Power Modules
6-36 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6.4.5 Installation
0
1P
&DELQHWZDOO
'5,9(&/L4IODQJHFRXSOLQJ

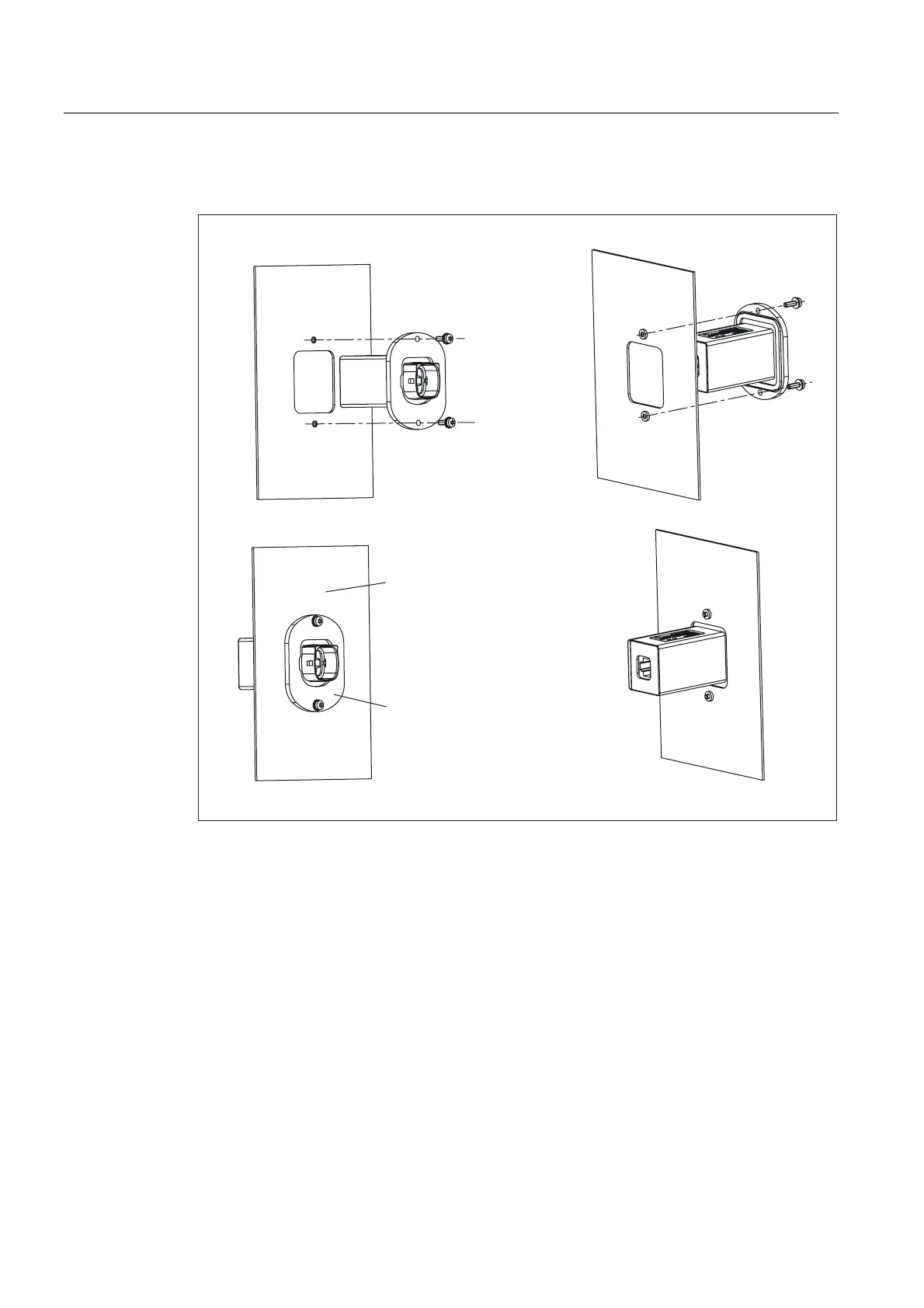

Figure 6-19 DRIVE-CLiQ Flanged Coupling
Installation
1. Create an opening for the DRIVE-CLiQ Flanged Coupling in the cabinet wall in
accordance with "Dimension drawing".
2. Insert the DRIVE-CLiQ Flanged Coupling in the opening from outside the cabinet.
3. Secure the DRIVE-CLiQ Flanged Coupling to the outer cabinet wall with two bolts M3 and
two nuts. In order to ensure good EMC, an electrically conductive connection should be
established between the DRIVE-CLiQ Flanged Coupling and the cabinet wall.
