Siemens SINAMICS Series - Electrical Connection

Motor Modules Booksize
4.2 Motor Modules with Internal Air Cooling
Equipment Manuel for Booksize Power Modules
4-16 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4.2.6 Electrical connection
Shield contact for the terminals

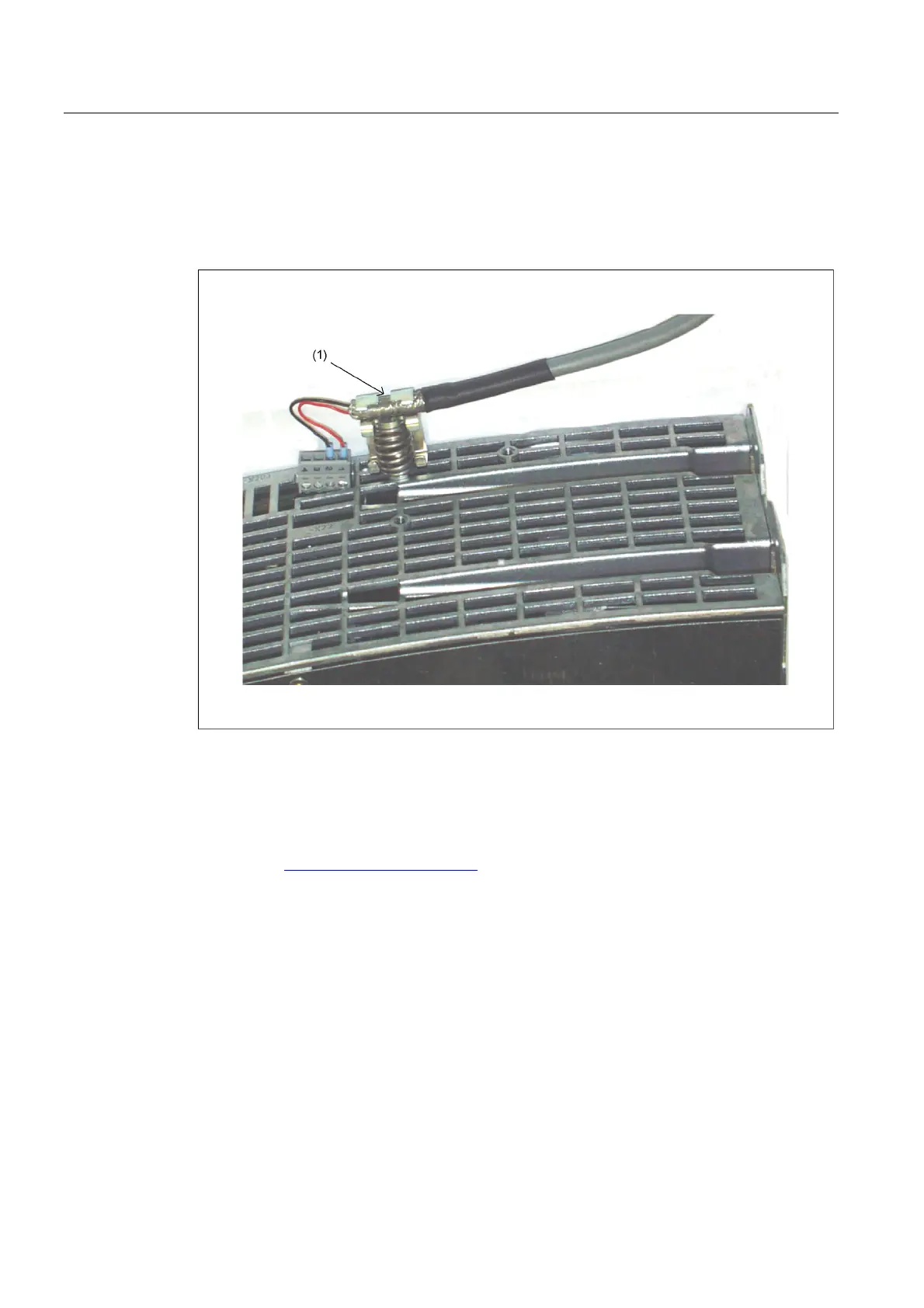

Figure 4-9 Shield contact for the terminals
(1) Shield contact: Weidmüller, order no. KLBÜ 3-8 SC
Internet address:
Weidmüller: http://www.weidmueller.com
