Siemens SINAMICS Series Equipment Manual

Options
6.1 Shielded terminal plates
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-15
6.1.5 Electrical Connection

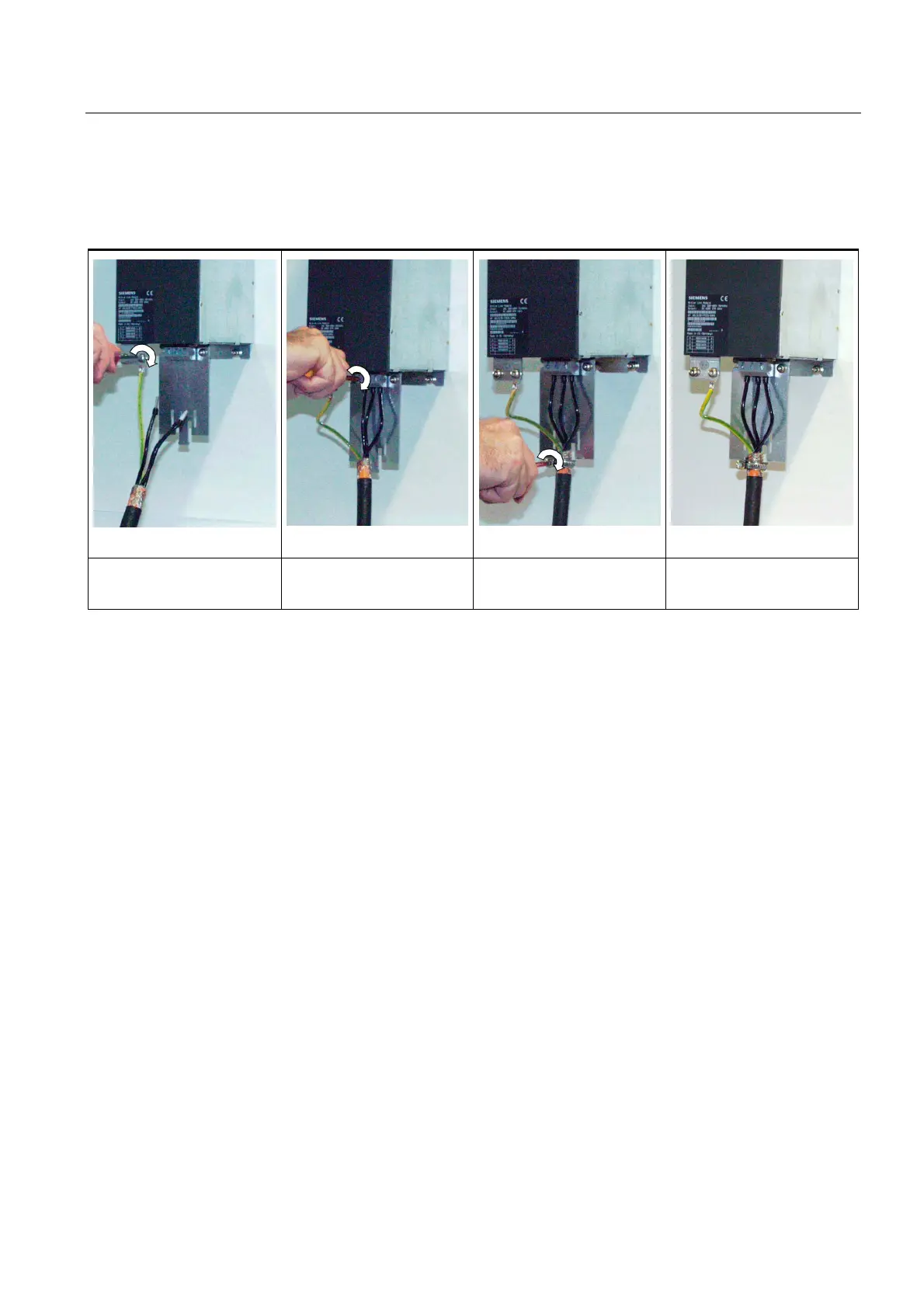

Table 6-4 Electrical connection to shielded terminal plate for 100 mm module (e.g. with internal air cooling)
Secure the earthing cable
with screwdriver T25/3 Nm.
Secure the power cable with
flat-bladed screwdriver
4/1.8 Nm.
Secure the shield clip to the
shielded terminal plate using
a suitable tool.
The power cable is
connected.
