6.2 DC link supply adapter
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-23
6.2.5 Installation
Required tools:
• Flat-bladed screwdriver 1 (0.5 x 3.5)
• Torx screwdriver T10
• Torx screwdriver T20

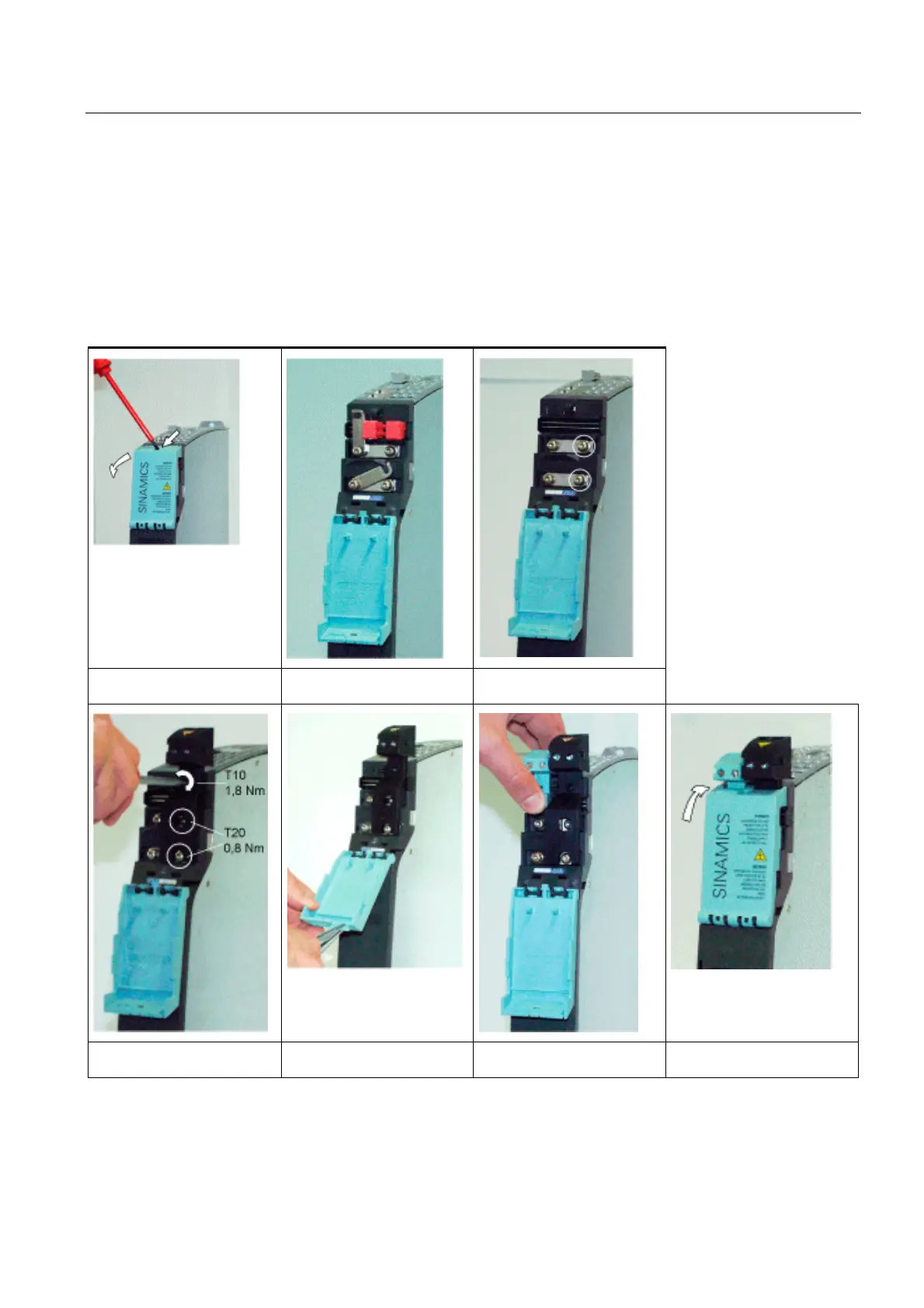

Table 6-8 Installing the DC link supply adapter for 50 mm and 100 mm modules
Unlock and open the
protective cover.
Opened cover with 24 V
jumper and DC link bridge.
The DC link bridge and 24 V
jumper have been removed.
Secure the adapter. Create the recess using
suitable pliers.
Attach the 24 V adapter. Close the protective cover.
