Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.2 Active Line Modules with Internal Air Cooling
Equipment Manuel for Booksize Power Modules
3-8 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2

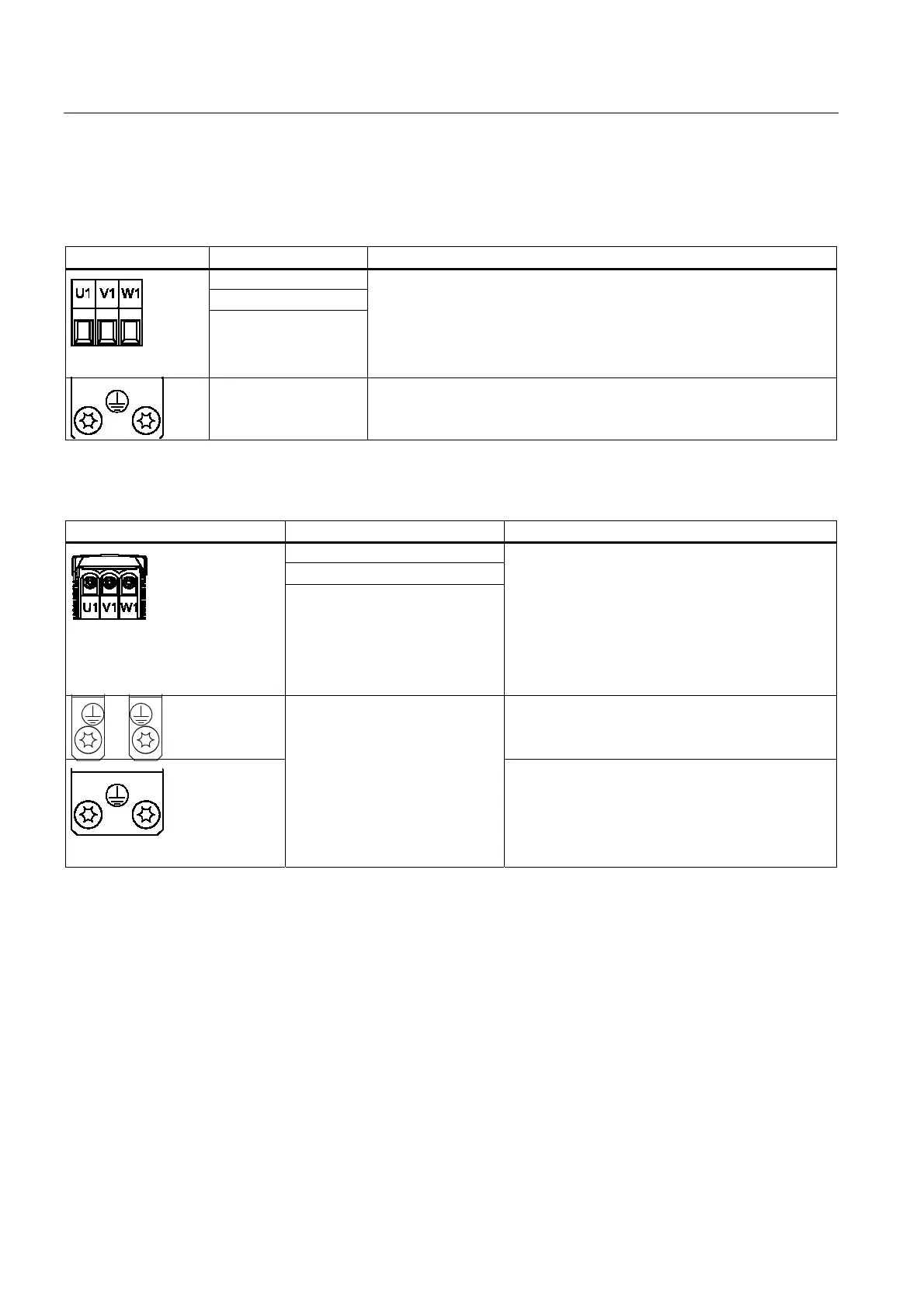

3.2.3.3 X1 line connection
Table 3-1 Terminal block X1 Active Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Max. connection voltage:
3AC 480 V +10 at 47 Hz to 63 Hz
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection Methods)
PE connection Threaded hole M5/3 Nm
1
1
for ring cable lugs to DIN 46234
Table 3-2 Terminal block for the Active Line Module (36 kW to 120 kW)
Terminals Technical specifications
U1
V1
W1
Max. connection voltage:
3AC 480 V +10% at 47 Hz to 63 Hz
36kW:
Threaded bolt M6/6 Nm
1
55 kW:
Threaded bolt M8/13 Nm
1
80 kW to 120 kW:
Threaded bolt M8/13 Nm
1
36kW:
Threaded hole M6/6 Nm
1
PE connection
55 kW:
Threaded hole M6/6 Nm
1
80 kW to 120 kW:
Threaded hole M8/13 Nm
1
1
for ring cable lugs to DIN 46234
