Line Modules Booksize
3.2 Active Line Modules with Internal Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-15
3.2.5 Installation
Installing the fan on Active Line Modules (80 kW and 120 kW)

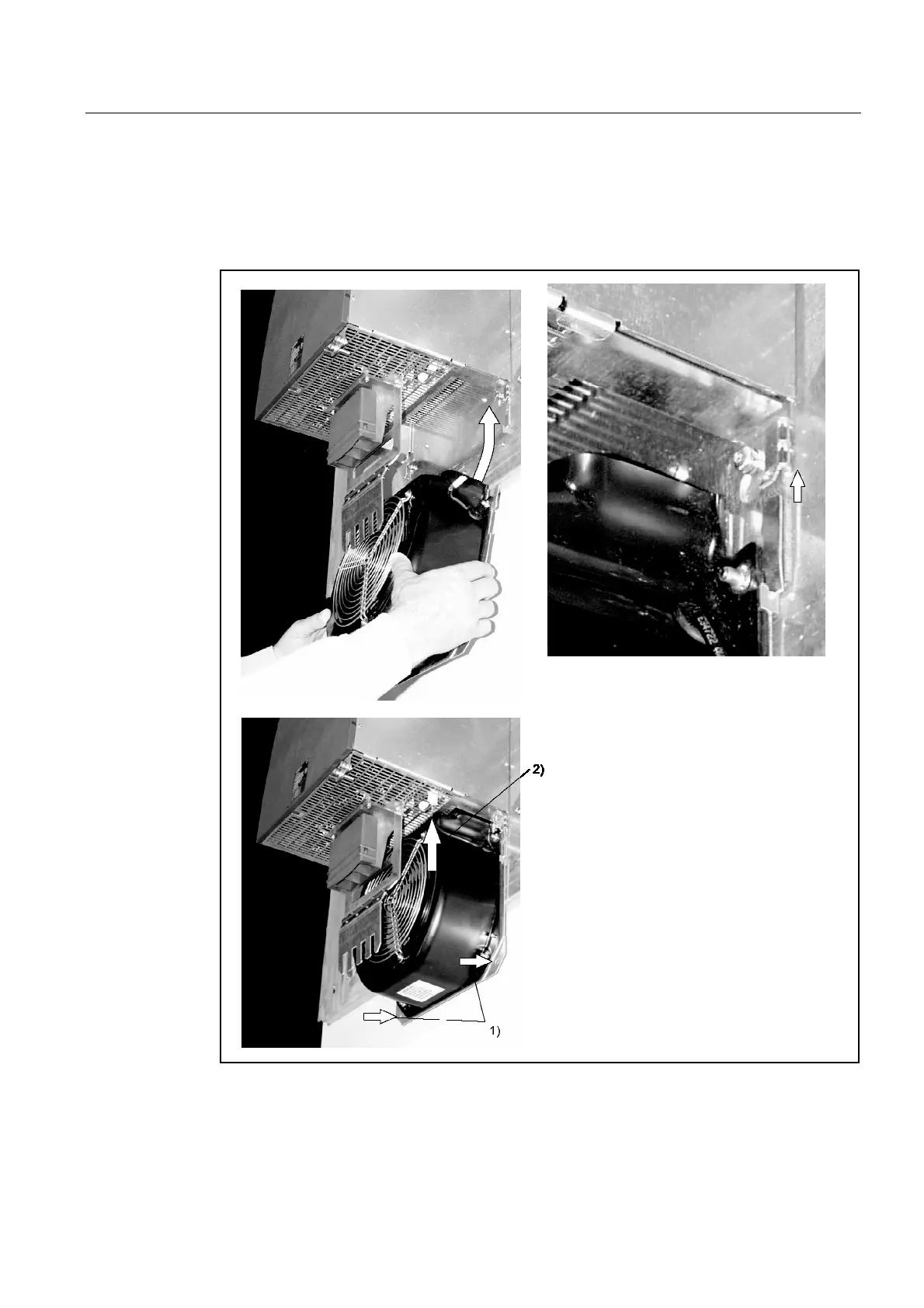

Figure 3-7 Installing the fan for 300 mm modules
1) Secure with M6 / 6 Nm screws
2) Connect the power supply for the fan
