Siemens SINAMICS Series Equipment Manual

Line Connection Booksize
2.6 Line reactors for Active Line Modules
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2-21
2.6.3 Connection description
The line reactor is rated for a voltage range from 380 V 3AC -10% to 480 V 3AC +10% at
47 Hz to 63 Hz.

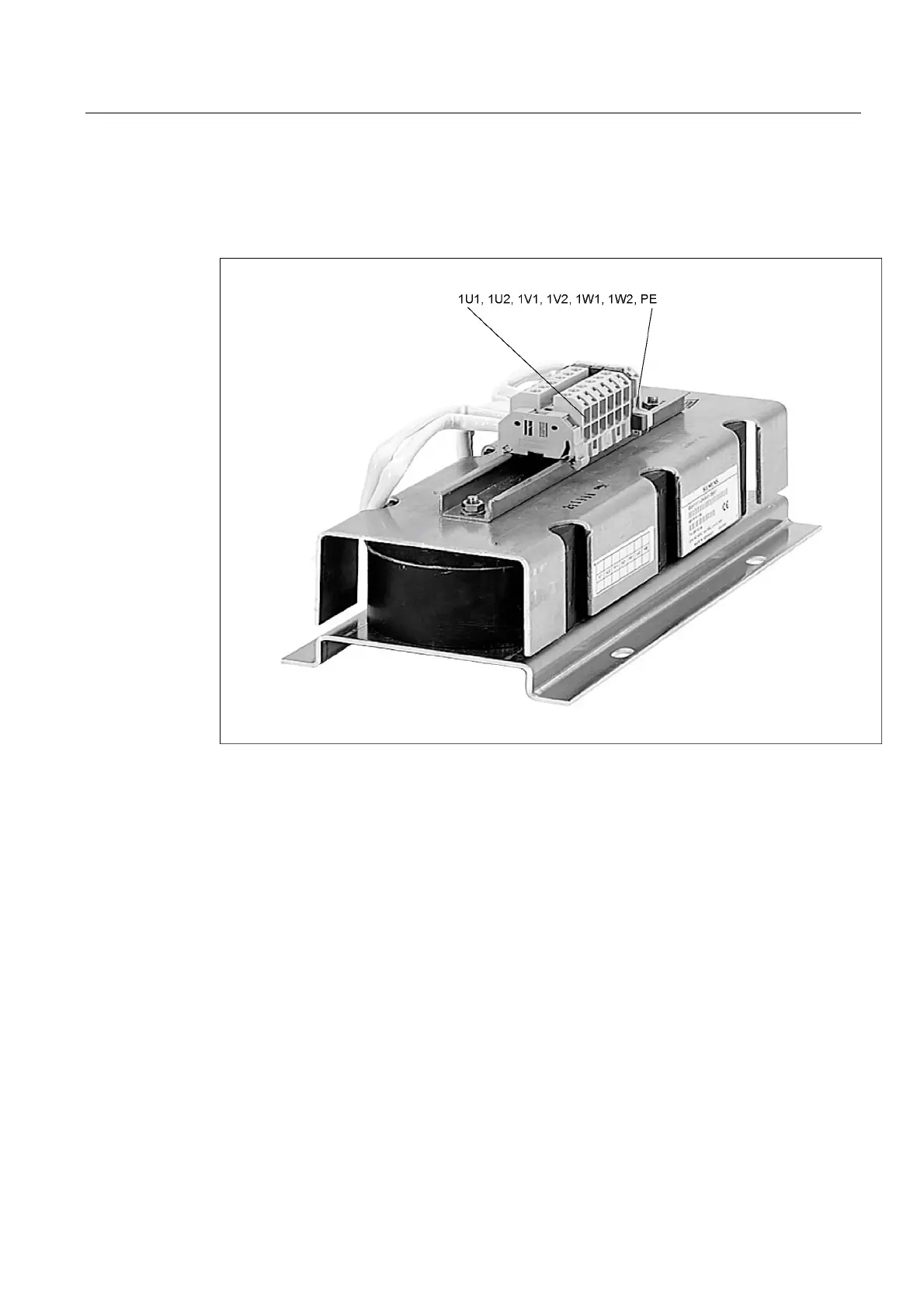

Figure 2-9 Line reactor (example: 16 kW)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
