Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-25

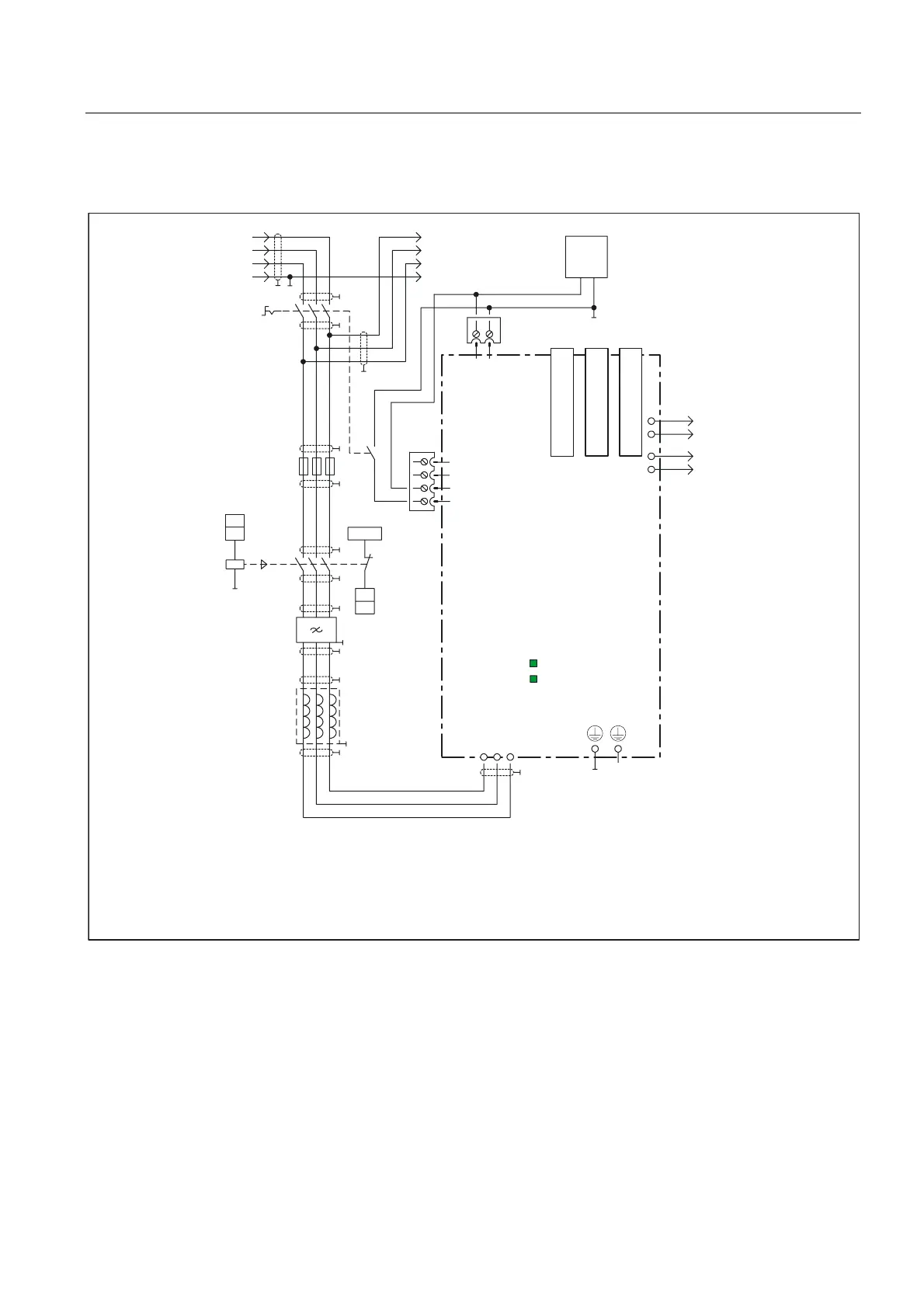

3.3.3.2 Connection example
tmp12e.vsd
Active line
module
X202X201
M
+
DCN
DCP
READY
DC LINK
LEDs
X200
L3
L2
L1
PE
1L3
1L2
1L1
PE
1)
EP +24 V
X21
4
3
2
1
EP M
-Temp
+Temp
U1
V1
W1
DO
CU
2)
+M
Ext.
24 V
+
M
X24
DI
CU
24 V DC
3)4)
'5,9(&/L4VRFNHW
'5,9(&/L4VRFNHW
'5,9(&/L4VRFNHW
0DLQFLUFXLWEUHDNHU
)XVHV
/LQHILOWHU
/LQHUHDFWRU
/LQHFRQWDFWRU
/HDGLQJEUHDNFRQWDFWW!PVIRURSHUDWLRQ9'&DQGJURXQGPXVWEHDSSOLHG
','2FRQWUROOHGE\WKHFRQWUROXQLW
1RDGGLWLRQDOFRQVXPHUSHUPLWWHGGRZQVWUHDPRIOLQHFRQWDFWRU
7KHFXUUHQWFDUU\LQJFDSDFLW\RIWKH'2PXVWEHWDNHQLQWRDFFRXQW
$QRXWSXWLQWHUIDFHHOHPHQWPD\KDYHWREHXVHG
Figure 3-13 Connection example of Active Line Module

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
