4.3 Motor Module with external air cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4-23
Derating as a function of the installation altitude
 
>P@



>@





  


,QVWDOODWLRQDOWLWXGHDERYHVHDOHYHO
3HUPLVVLEOHRXWSXWFXUUHQW

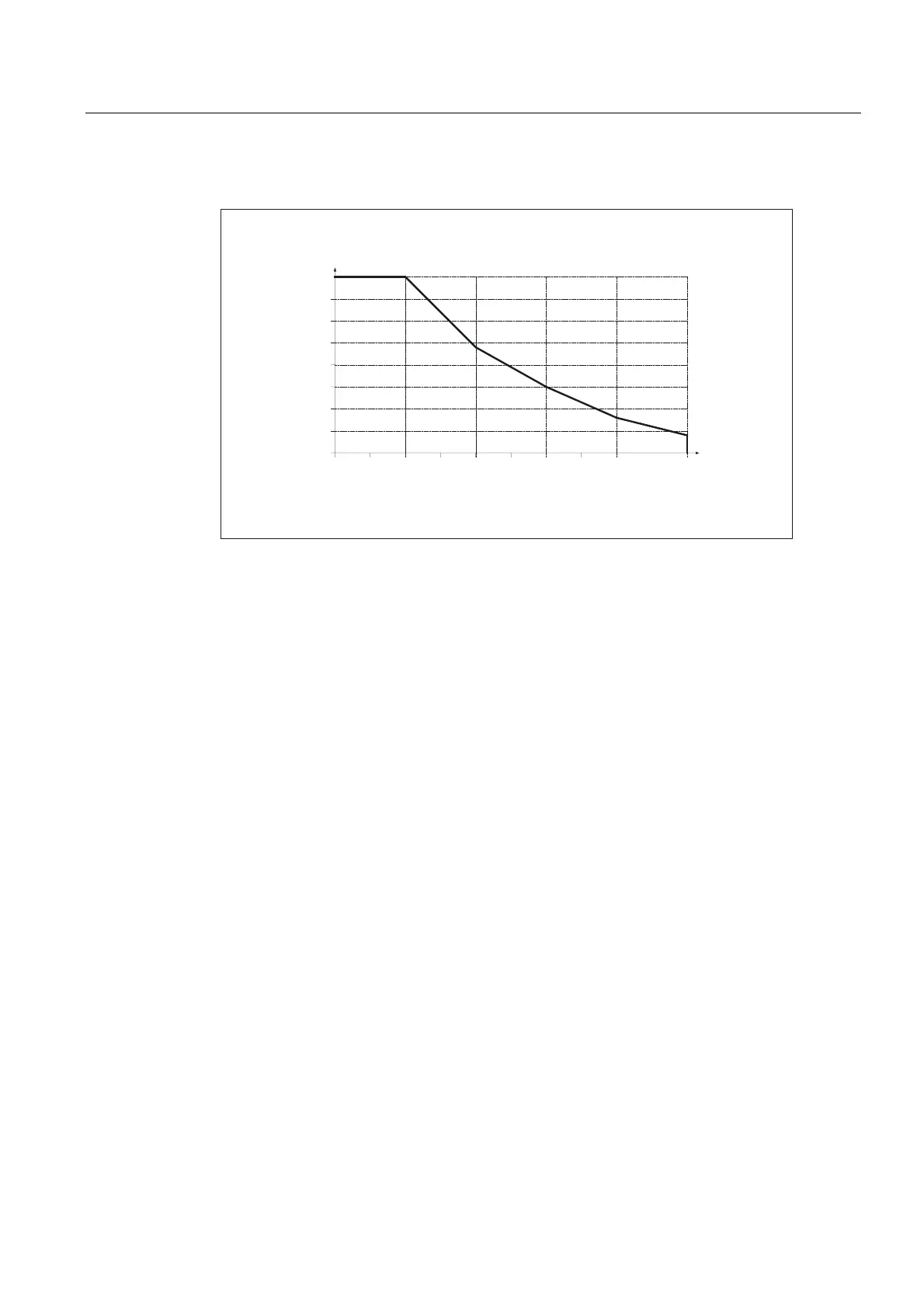

Figure 4-18 Derating as a function of the installation altitude
4.3 4.3 Motor Module with external air cooling
4.3.1 Description
A Motor Module with external air cooling is a power unit (inverter) that provides the power
supply for the connected motor(s). Power is supplied by means of the DC link of the drive
unit. A Motor Module must be connected to a Control Unit via DRIVE-CLiQ. The open-loop
and closed-loop control functions for the Motor Module are stored in the Control Unit.
Single Motor Modules and Double Motor Modules are available.
Just one motor can be connected to and operated using a Single Motor Module. Two motors
can be connected to and operated with a Double Motor Module.
External air cooling uses the "through-hole" method. This is a cooling method for SINAMICS
power units that is only available for booksize devices. The power unit and its heat sink can
be inserted in a rectangular knockout at the rear of the switching cabinet and mounted with a
seal. The heat sink fins and the fan (included in the scope of supply) project beyond the rear
of the switching cabinet and the heat is dissipated outside the switching cabinet or in a
separate air duct.

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
