Siemens SINAMICS Series Equipment Manual

System overview
1.5 SINAMICS S120 Components
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
1-7
1.5 1.5 SINAMICS S120 Components
This overview features the SINAMICS S120 components that are primarily used for multi-
axis drive tasks.

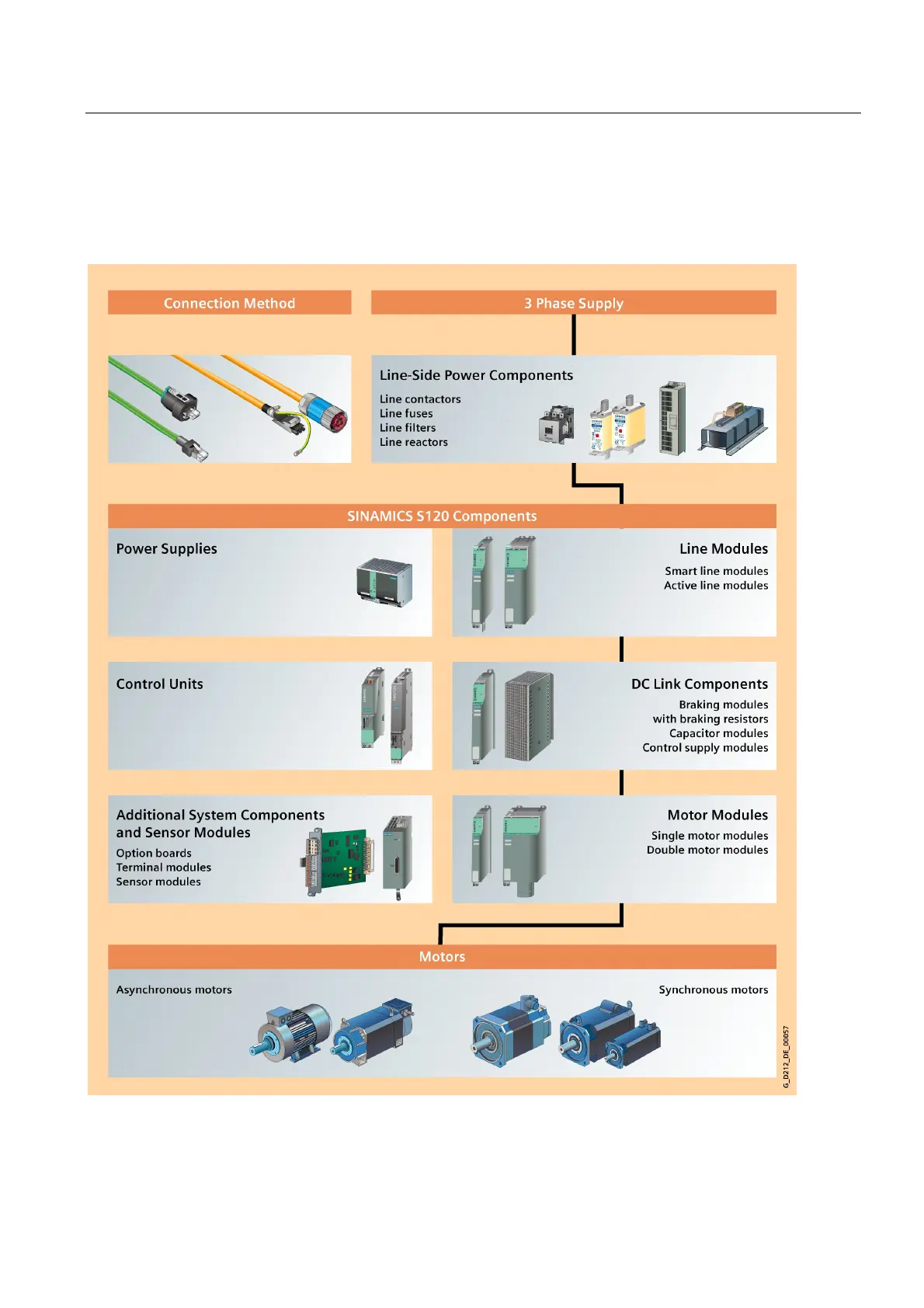

Figure 1-5 SINAMICS S120 component overview

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
