Line Modules Booksize
3.5 Smart Line Modules (16 kW and 36 kW) with internal air cooling
Equipment Manuel for Booksize Power Modules
3-70 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.5.5 Installation
Remove the holder for securing the Control Unit
If an additional component is to be flush-mounted to the left of the component, the holders
for securing the Control Unit must be removed.

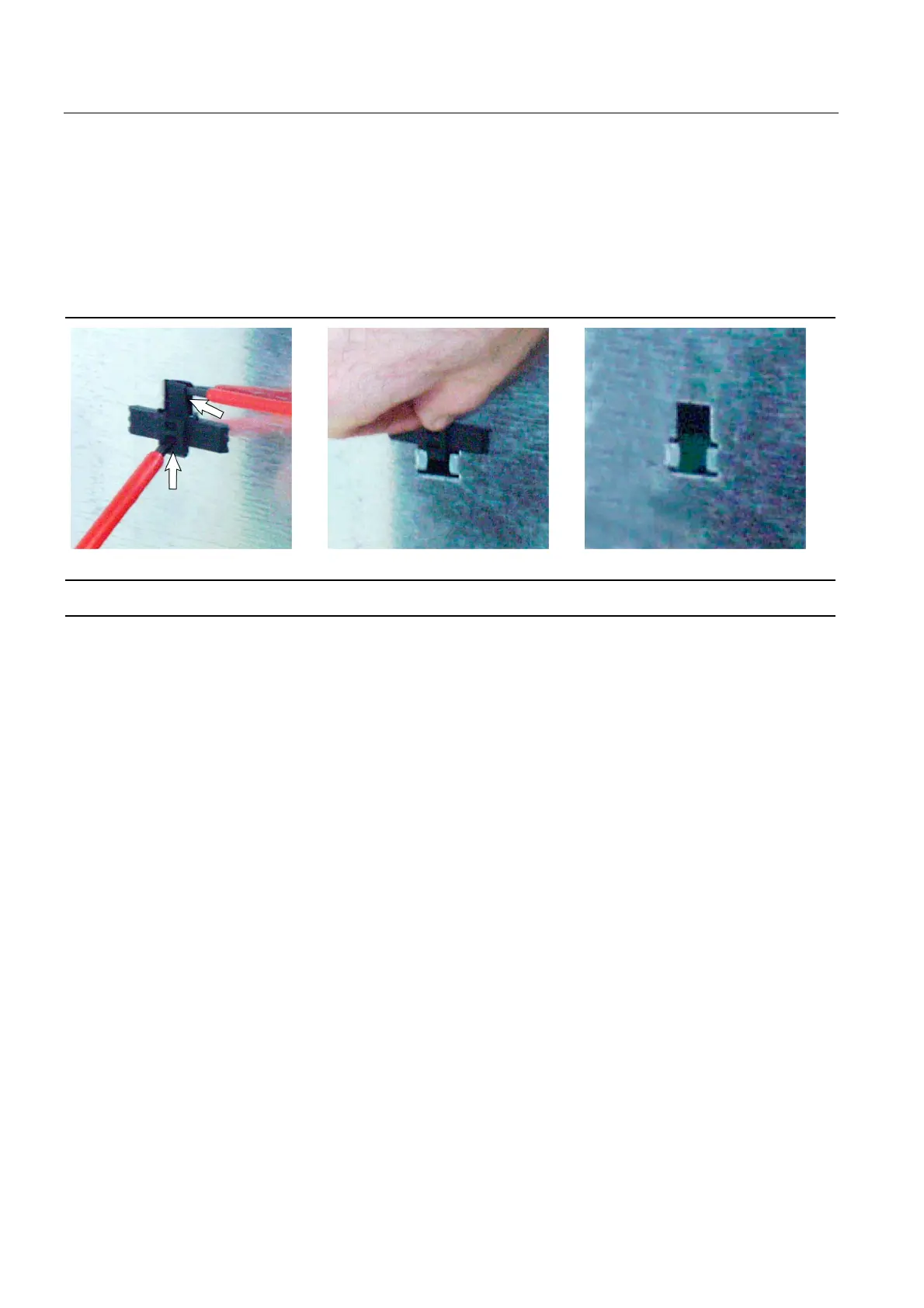

Use suitable tools to lift the latching
device and push up the holder.
Remove the holder. The holder removed
