Siemens SINAMICS Series Equipment Manual

Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-1
Line Modules Booksize
3
3.1 3.1 Introduction
Line Modules generate a DC voltage that is used to power the Motor Modules from the
connected supply voltage.
The Active Line Modules and Smart Line Modules (16 and 36 kW) are equipped with DRIVE-
CLiQ interfaces so that they can be connected to the Control Unit. The Smart Line Modules
(5 and 10 kW) must be connected to the Control Unit via terminals.

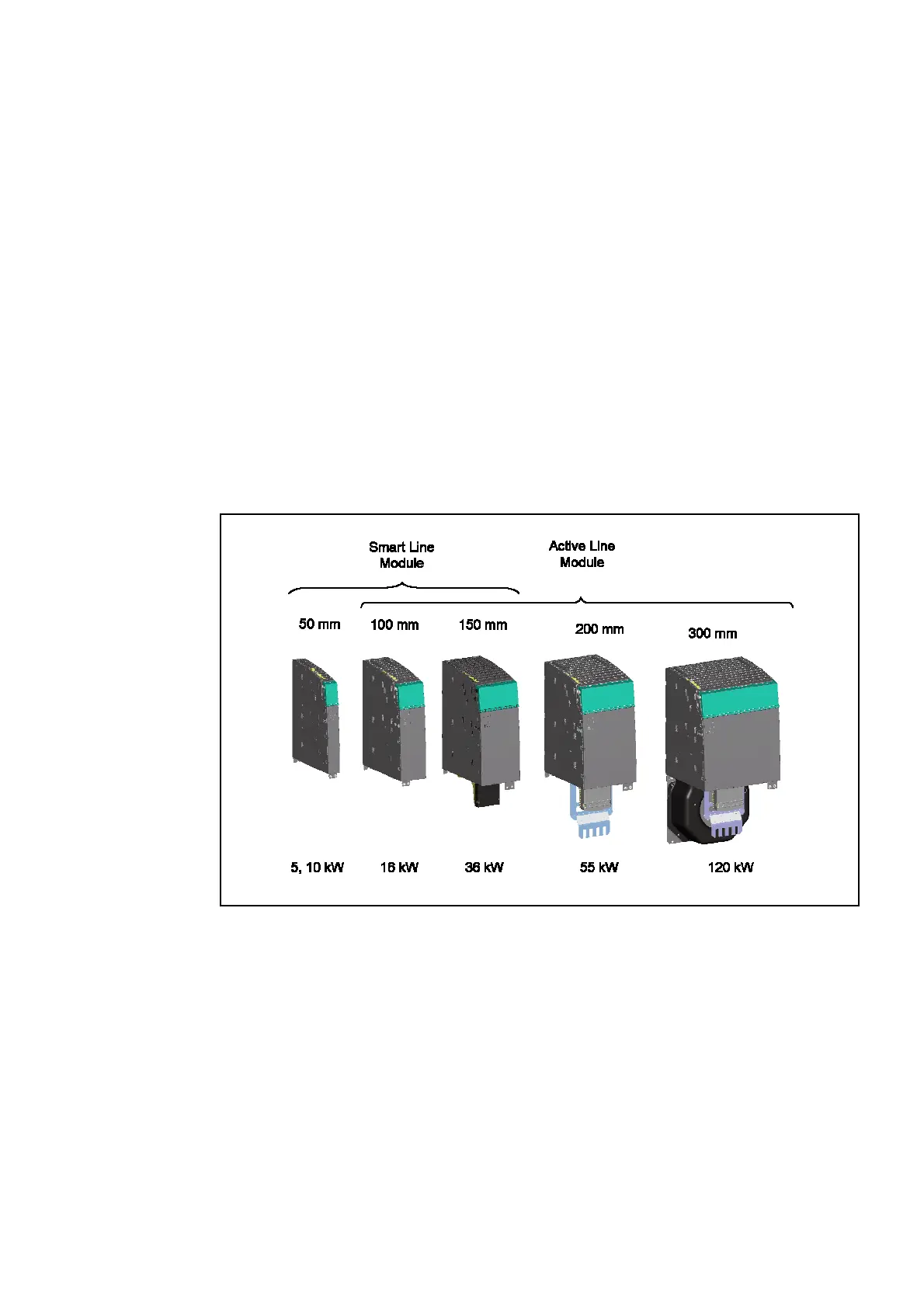

Figure 3-1 Overview of Line Modules

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
