Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.5 Smart Line Modules (16 kW and 36 kW) with internal air cooling
Equipment Manuel for Booksize Power Modules
3-64 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.5.3.3 X1 line connection

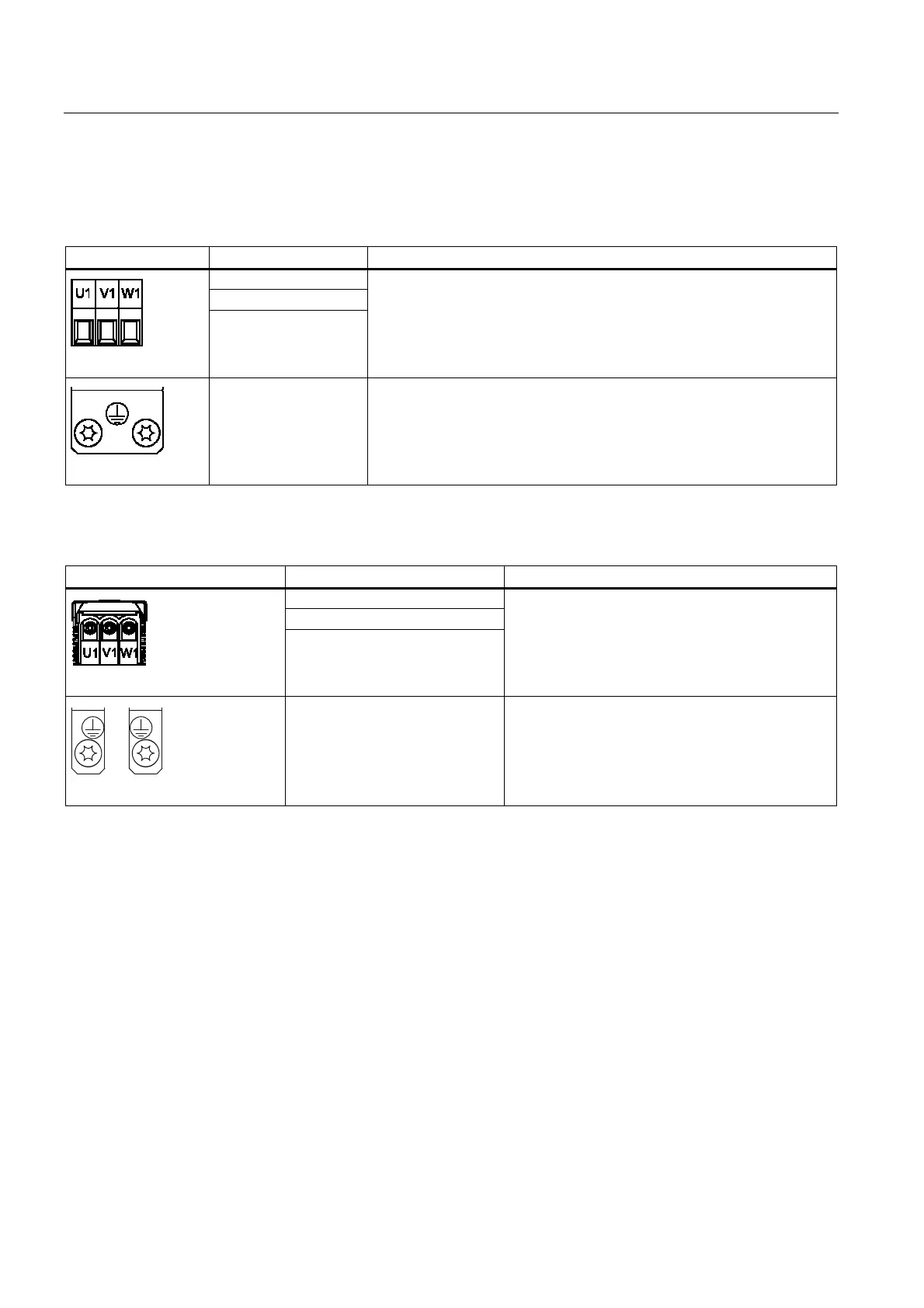

Table 3-28 Terminal block X1 Smart Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Supply voltage:
3AC 480 V +10% (-15% < 1 min) at 47 Hz to 63 Hz
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection Methods)
PE connection Threaded hole M5/3 Nm
1
1
for ring cable lugs to DIN 46234
Table 3-29 Terminal block Smart Line Module 36 kW
Terminals Technical specifications
U1
V1
W1
Supply voltage:
3AC 480 V +10% (-15% < 1 min) at 47 Hz to 63 Hz
36kW:
Threaded bolt M6/6 Nm
1)
PE connection 36kW:
Threaded hole M6/6 Nm
1)
1
for ring cable lugs to DIN 46234
