Siemens SINAMICS Series Equipment Manual

Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4-1
Motor Modules Booksize
4
4.1 4.1 Introduction
The motor modules in the SINAMICS S system in “booksize” format are inverters. The
control information is generated in the control unit and distributed to the individual motor
modules via DRIVE-CLiQ.
Depending on the type (single or double), each motor module has one or two DRIVE-CLiQ
interfaces for connecting the motor encoder evaluation (sensor modules).

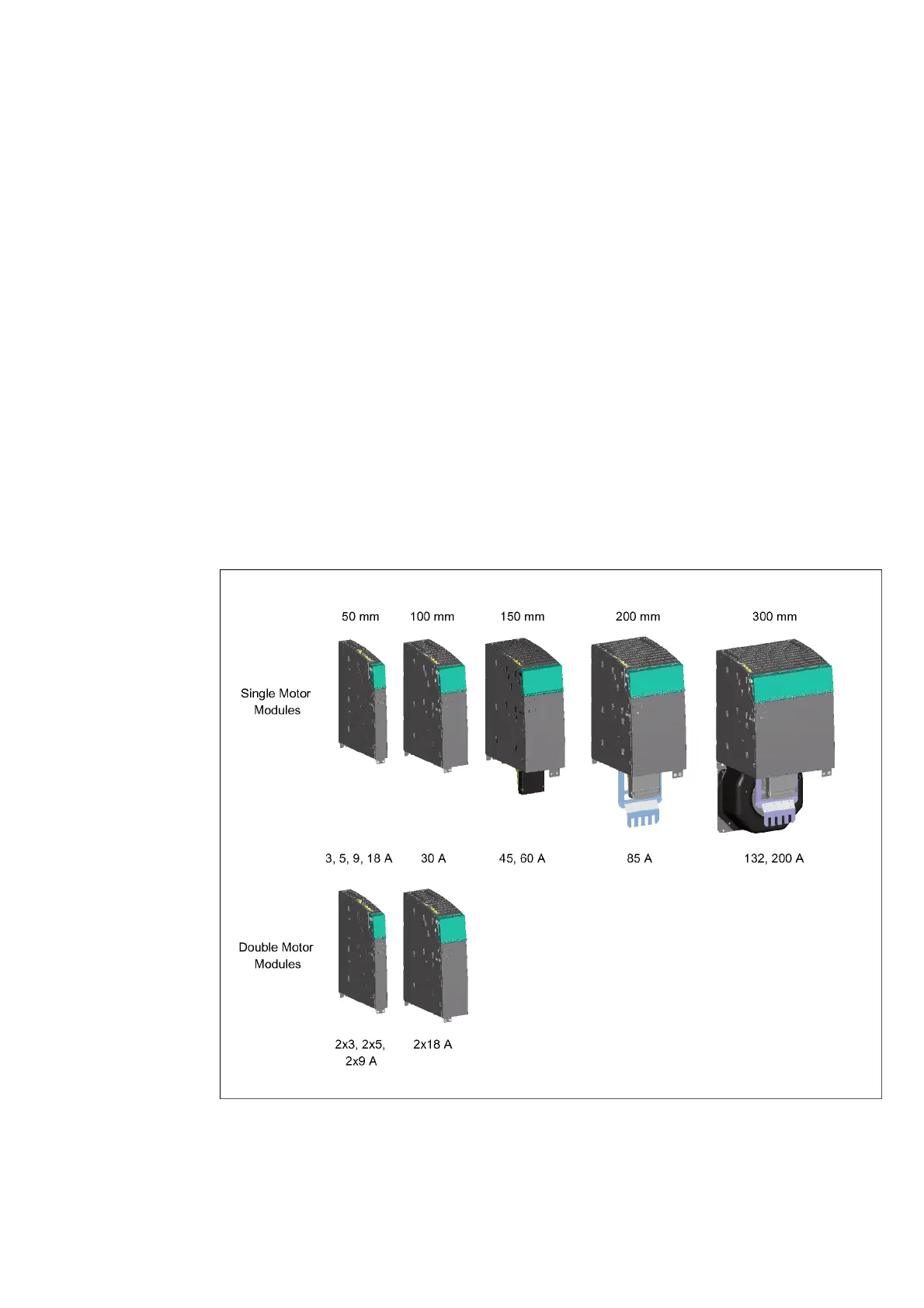

Figure 4-1 Overview of motor modules booksize (currents are continuous rms)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
