Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.6 Smart Line Modules (5 kW and 10 kW) with external air cooling
Equipment Manuel for Booksize Power Modules
3-94 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2

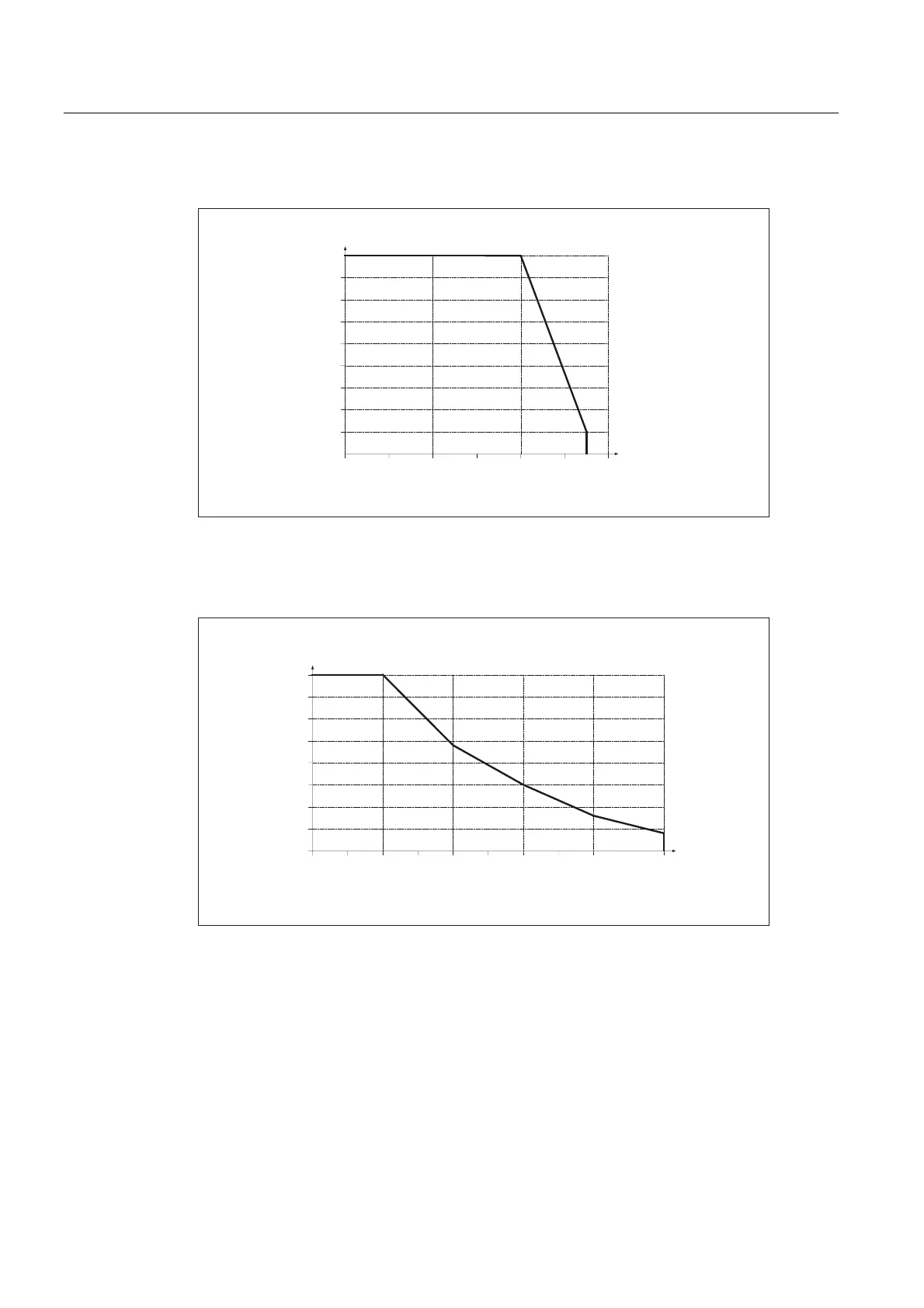

Derating as a function of the ambient temperature
020
[°C]
80
100
[%]
90
70
40 55
60
55
Ambient temperature
Permissible output power
Figure 3-52 Derating as a function of the ambient temperature
Derating as a function of the installation altitude
1000 2000
[m]
80
75
100
[%]
85
90
95
70
65
3000 4000
5000
60
0
Ambient temperature
Permissible output power
Figure 3-53 Derating as a function of the installation altitude

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
