Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
3-26 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.3.3.3 Line connection

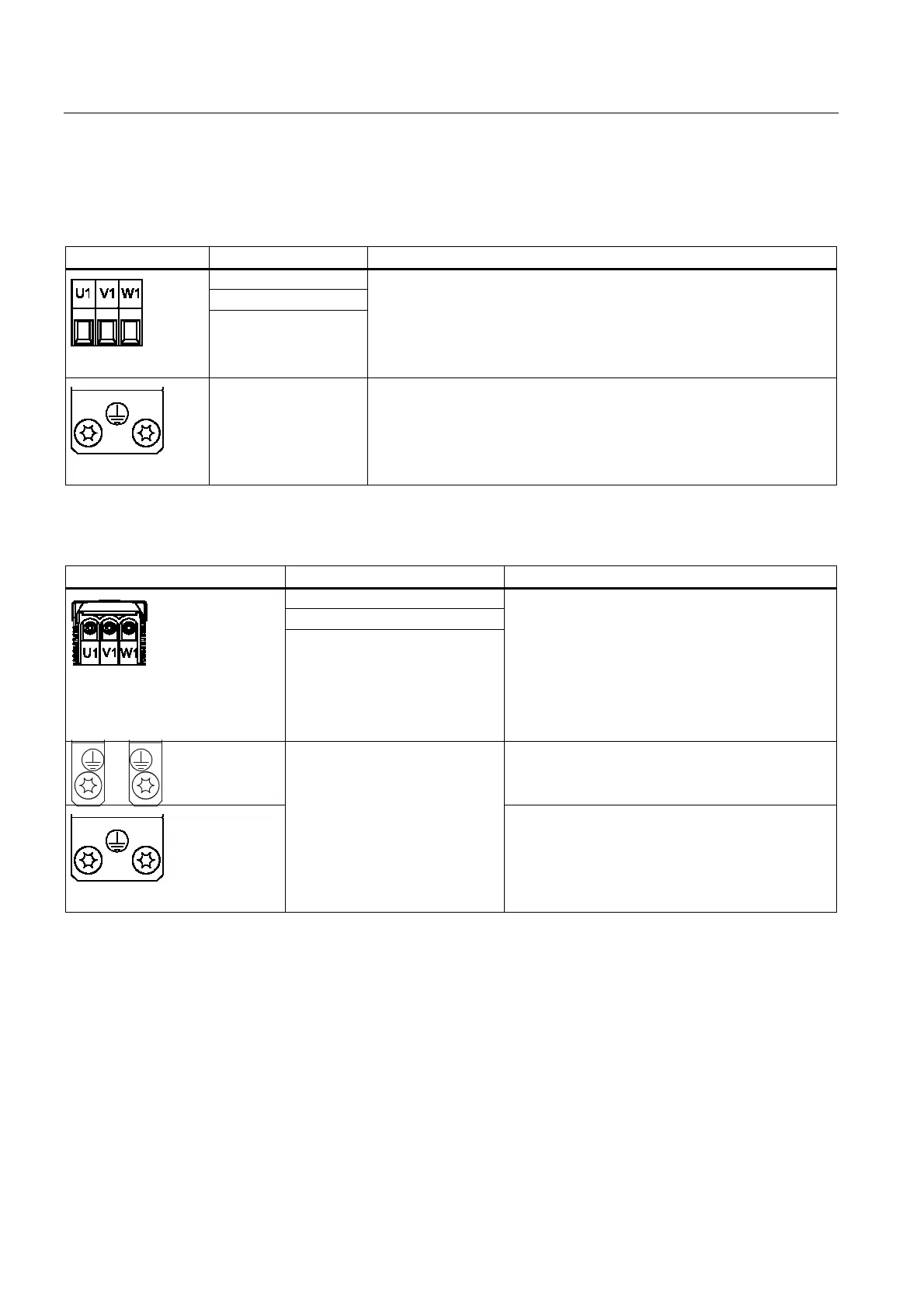

Table 3-11 Terminal block X1 Active Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Supply voltage:
3AC 480 V +10% (-15% < 1 min) at 47 Hz to 63 Hz
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection Methods)
PE connection Threaded hole M5/3 Nm
1
1
for ring cable lugs to DIN 46234
Table 3-12 Terminal block for the Active Line Module (36 kW to 120 kW)
Terminals Technical specifications
U1
V1
W1
Supply voltage:
3AC 480 V +10% (-15% < 1 min) at 47 Hz to 63 Hz
36kW:
Threaded bolt M6/6 Nm
1
55 kW:
Threaded bolt M8/13 Nm
1
80 kW to 120 kW:
Threaded bolt M8/13 Nm
1
36kW:
Threaded hole M6/6 Nm
1
PE connection
55 kW:
Threaded hole M6/6 Nm
1
80 kW to 120 kW:
Threaded hole M8/13 Nm
1
1
for ring cable lugs to DIN 46234

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
