Siemens SINAMICS Series - X1 Line Connection

Line Modules Booksize
3.6 Smart Line Modules (5 kW and 10 kW) with external air cooling
Equipment Manuel for Booksize Power Modules
3-80 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3.6.3.3 X1 line connection

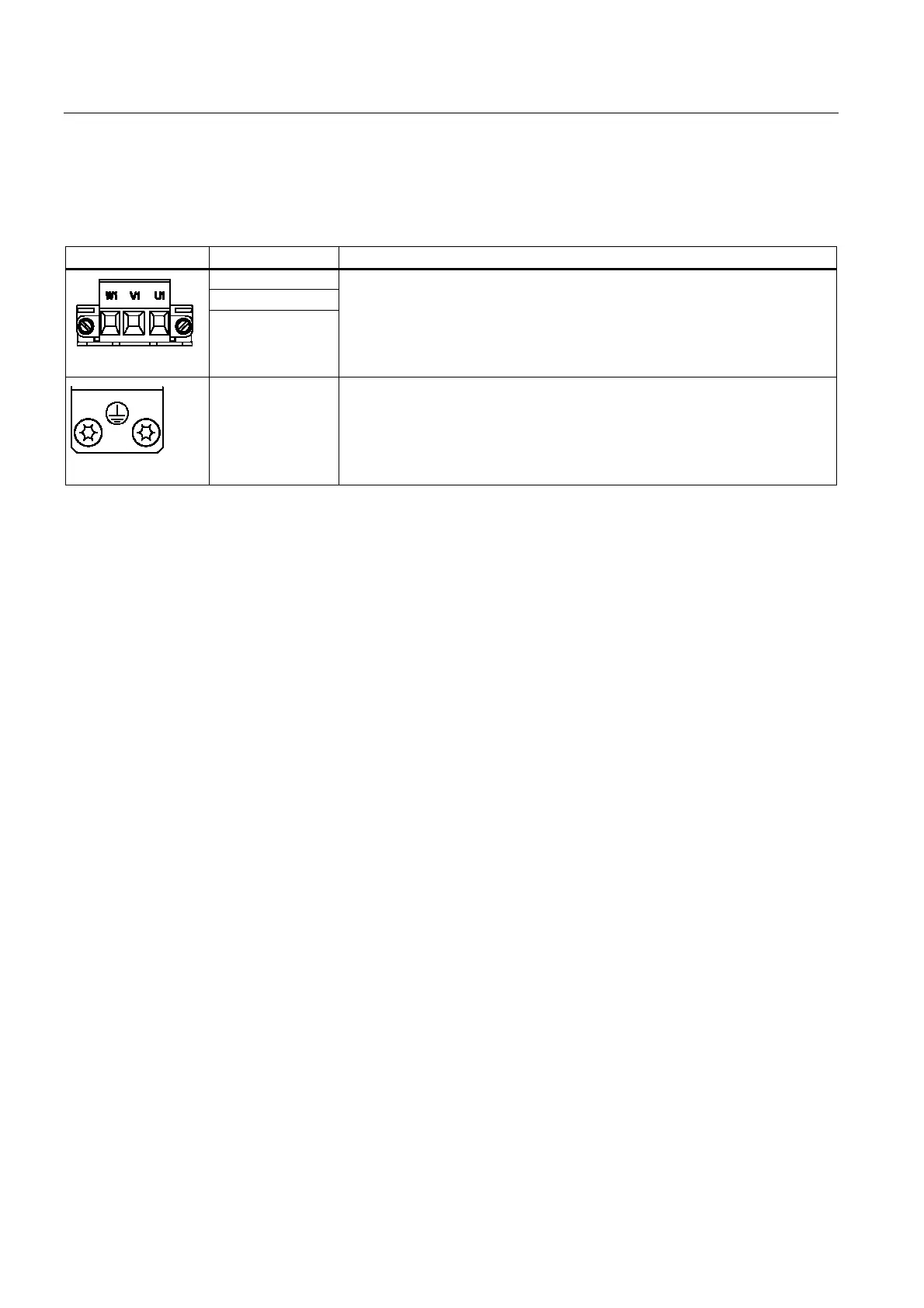

Table 3-37 Terminal block X1 of Smart Line Module (5 kW and 10 kW)
Terminal Technical specifications
U1
V1
W1
Max. connection voltage:
3AC 480 V +10 at 47 Hz to 63 Hz
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (see Connection Methods)
PE connection Threaded hole M5/3 Nm
1
1
for ring cable lugs to DIN 46234
