6.2 DC link supply adapter
Equipment Manuel for Booksize Power Modules
6-24 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2

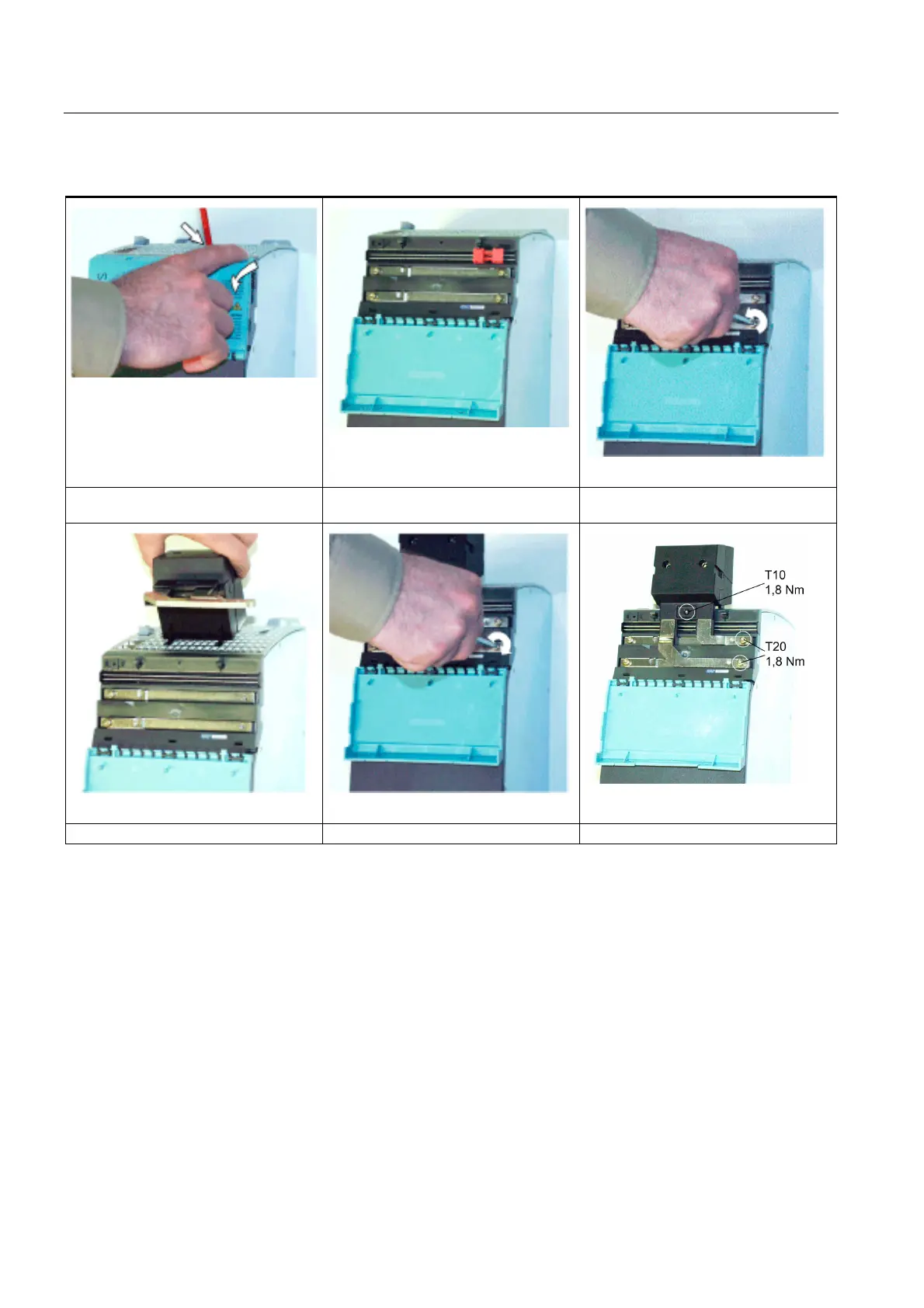

Table 6-9 Installing the DC link supply adapter for 150 mm, 200 mm, and 300 mm modules
Unlock and open the protective cover. Opened cover with 24 V jumper Remove the 24 V jumper and unscrew
the DC link screws.
Hook in the adapter. Secure the adapter. The adapter has been screwed in.
