4.3 Motor Module with external air cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4-33

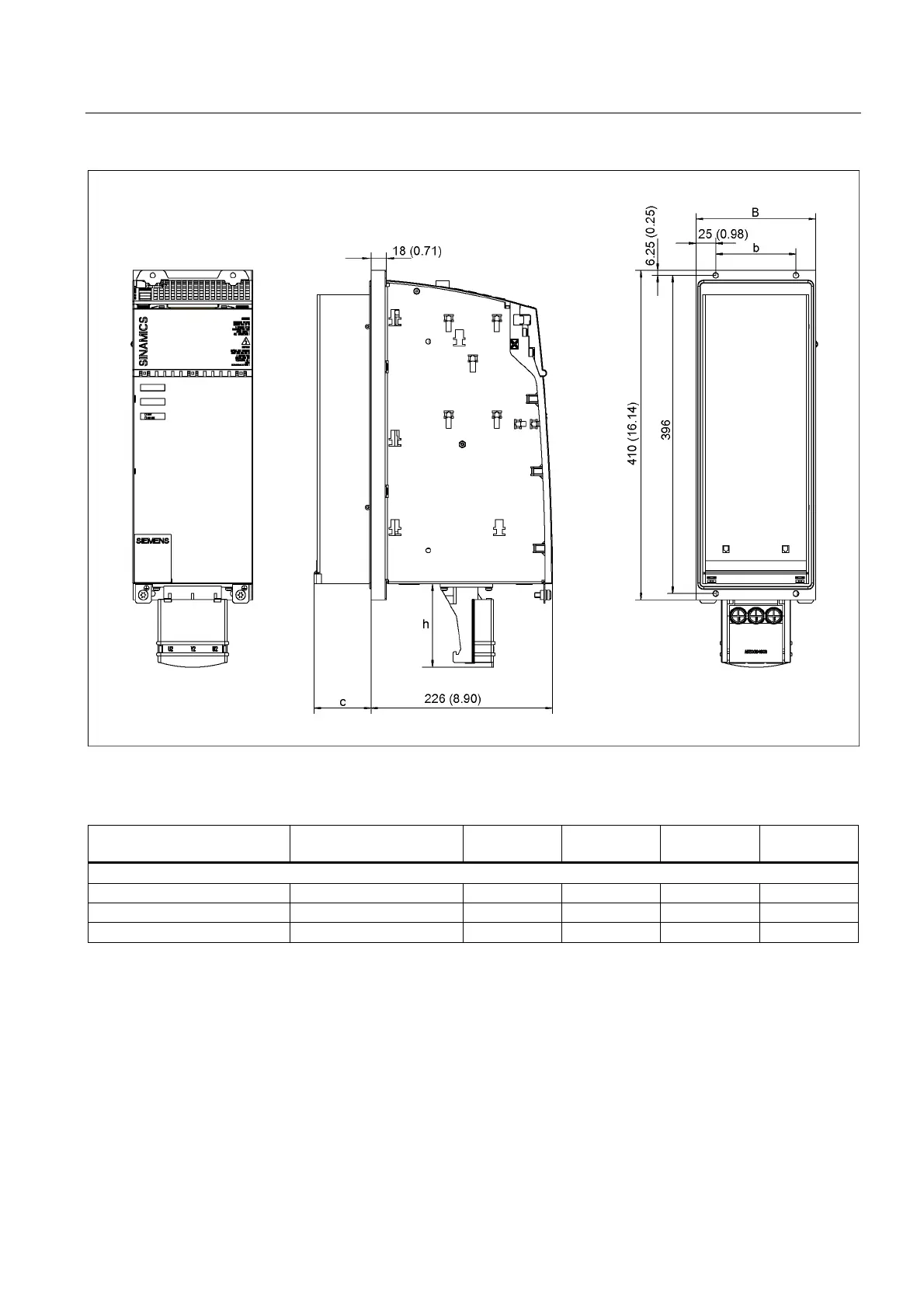

Figure 4-23 Dimension drawing of Motor Module with external air cooling (45 A, 60 A, and 85 A)
Table 4-18 Dimensions of Motor Module with external air cooling (45 A, 60 A, and 85 A)
Motor Module type Order number W [mm]
(inches)
w [mm]
(inches)
c [mm]
(inches)
h [mm]
(inches)
Motor Module with External Air Cooling
Single Motor Module 45 A 6SL3121-1TE24-5AAx 150 (5.91) 100 (3.94) 71 (2.80) 105 (4.13)
Single Motor Module 60 A 6SL3121-1TE26-0AAx 150 (5.91) 100 (3.94) 71 (2.80) 105 (4.13)
Single Motor Module 85 A 6SL3121-1TE28-5AAx 200 (7.87) 150 (5.91) 92 (3.62) 105 (4.13)
