Siemens SINAMICS Series Equipment Manual

Motor Modules Booksize
4.3 Motor Module with external air cooling
Equipment Manuel for Booksize Power Modules
4-34 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2

%
E

F

 

K

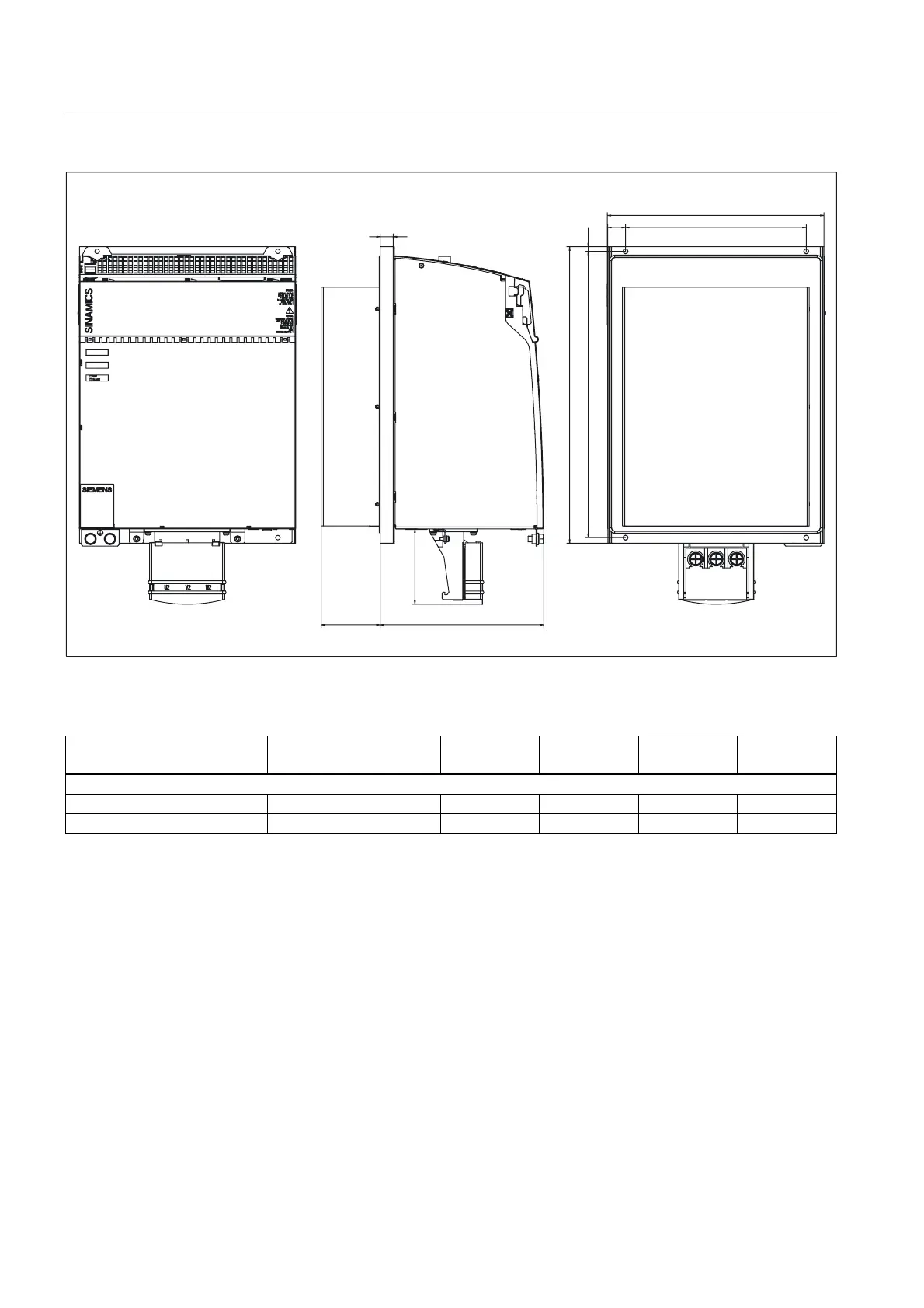

Figure 4-24 Dimension drawing of Motor Module with external air cooling (132 A and 200 A)
Table 4-19 Dimensions of Motor Module with external air cooling (132 A and 200 A)
Motor Module type Order number W [mm]
(inches)
w [mm]
(inches)
c [mm]
(inches)
h [mm]
(inches)
Motor Module with External Air Cooling
Single Motor Module 132 A 6SL3121-1TE31-3AAx 300 (11.81) 250 (9.84) 82 (3.23) 105 (4.13)
Single Motor Module 200 A 6SL3121-1TE32-0AAx 300 (11.81) 250 (9.84) 82 (3.23) 105 (4.13)

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
