Siemens SINAMICS Series Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with External Air Cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
3-37
7RFRPSO\ZLWKGHJUHHRISURWHFWLRQ,3WKHVXUIDFHV
EHWZHHQWKHPRXQWLQJSODWHDQGFDELQHWEDUPXVWEHVHDOHGDOODURXQG
HJXVHVHDOLQJDJHQW7HURVWDWIURP7HURVRQ
%DFNZDOO
&RYHU
,QVHUWSODWH
0RXQWLQJSODWH
)DQRXWOHW
)LOWHUZLWKILOWHUHGIDQ

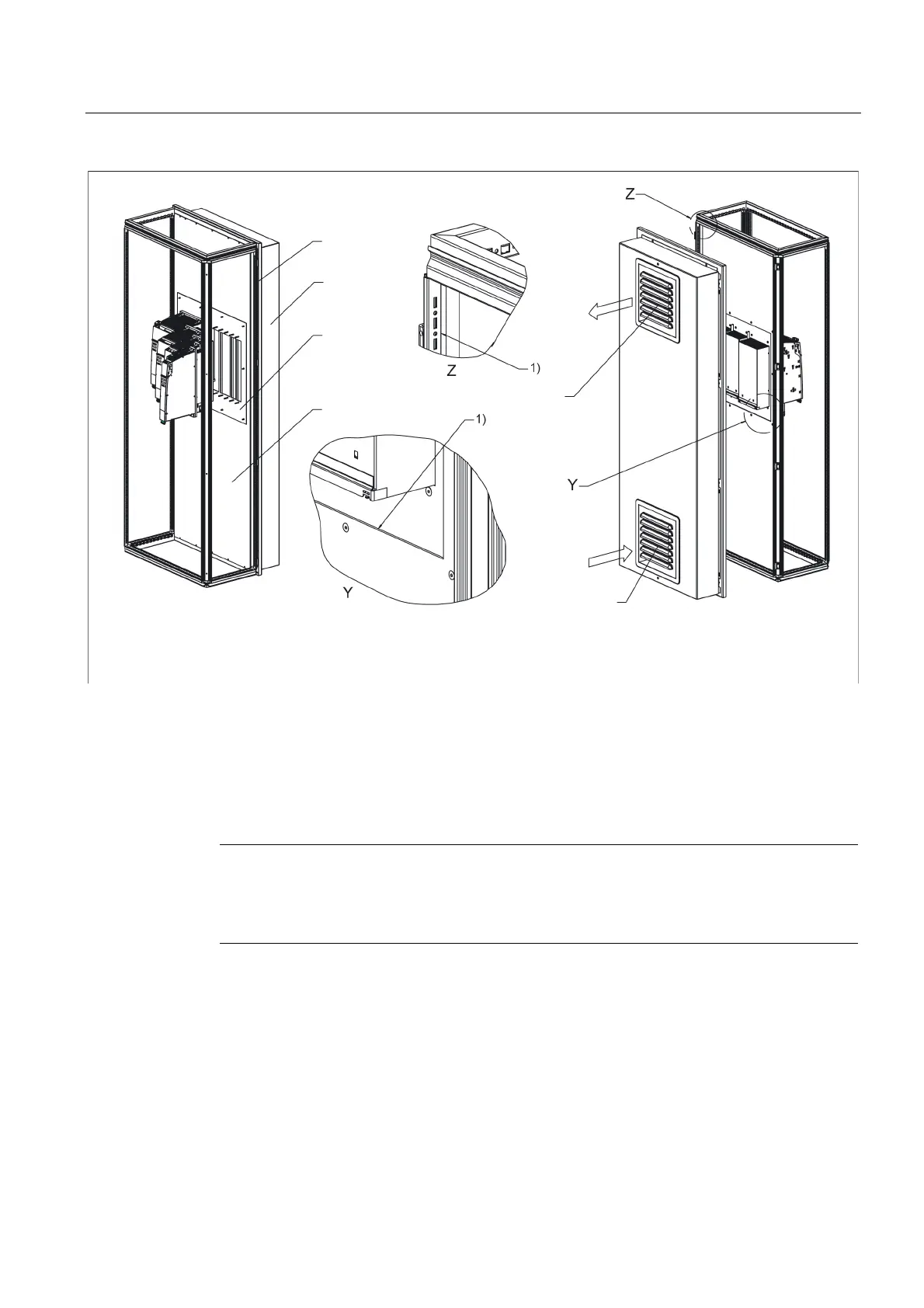

Figure 3-21 Example 2: installation in cabinet with mounting plate
We recommend that you attach a cover and filtered fan to the cabinet.
The filtered fan must be fitted in such a way that the cooling air required by the drive line-up
is not restricted. This can be determined by establishing the total cooling air required by the
individual components. This information is available in the technical specifications.
Note
If the cooling air requirement is not covered by the filtered fan, the components cannot
output their specified power.
The filters with a filtered fan must be regularly checked for dirt and cleaned if necessary.

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
