Siemens SINAMICS Series - Page 199

Motor Modules Booksize
4.3 Motor Module with external air cooling
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
4-37

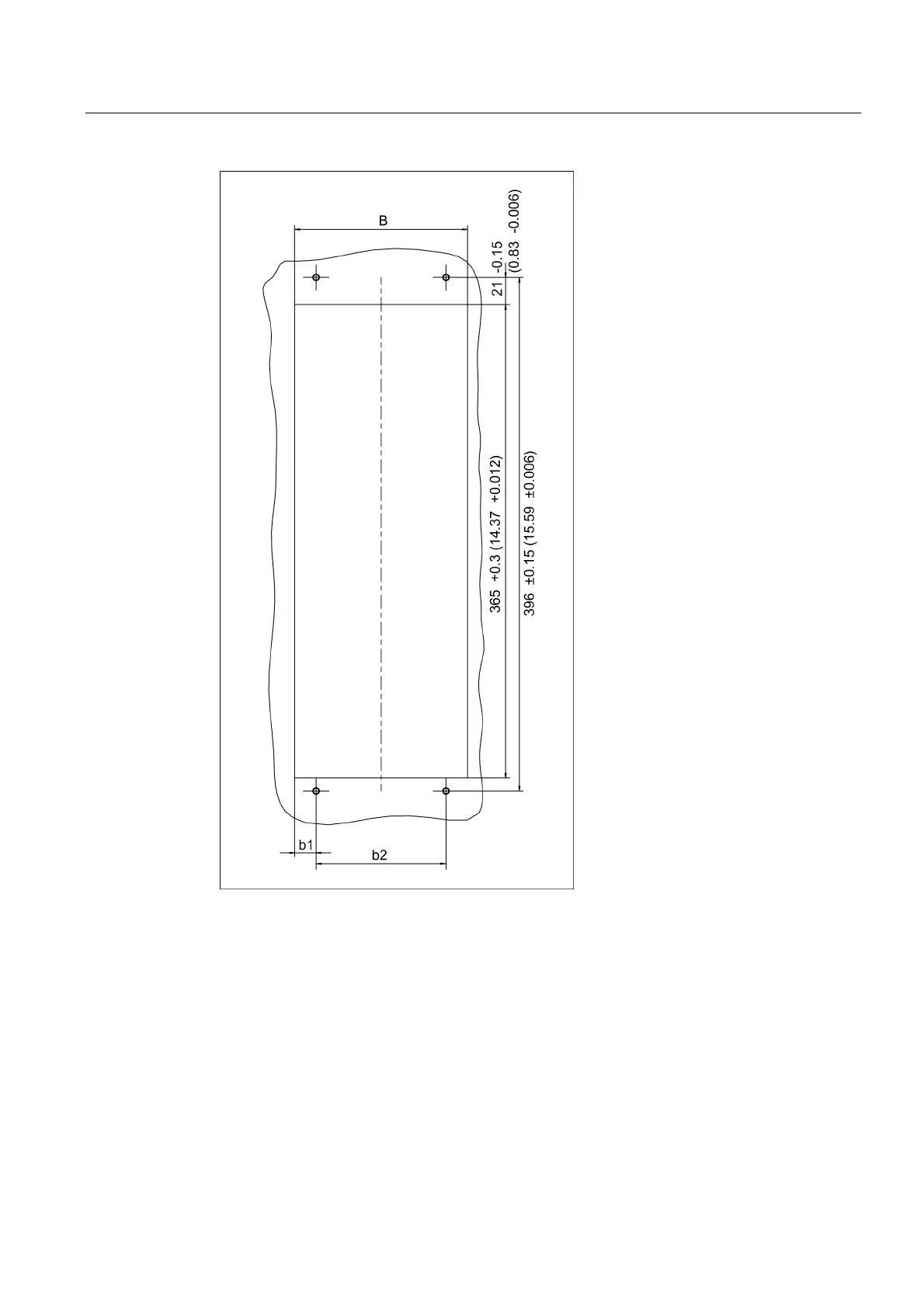

Figure 4-27 Installation openings for the Power Module with external air cooling (50 mm to 200 mm)
