Cabinet Configuration and EMC Booksize
7.6 Connection methods
Equipment Manuel for Booksize Power Modules
7-30 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
Various options are available for the shield contact:
5. Shield contact on a toothed rail
The toothed rail should be fitted at a distance of ≤ 150 mm below the drive line-up with
the greatest possible surface area. Wherever possible, the brake conductors must be
kept physically separate from U/V/W.
Note
Measures must be taken on site to relieve strain on the cables.
Max. permissible cable tension in the connection direction: 100 N
6. Customer-specific shield contact
[r
[
s
s
s
[
5
[

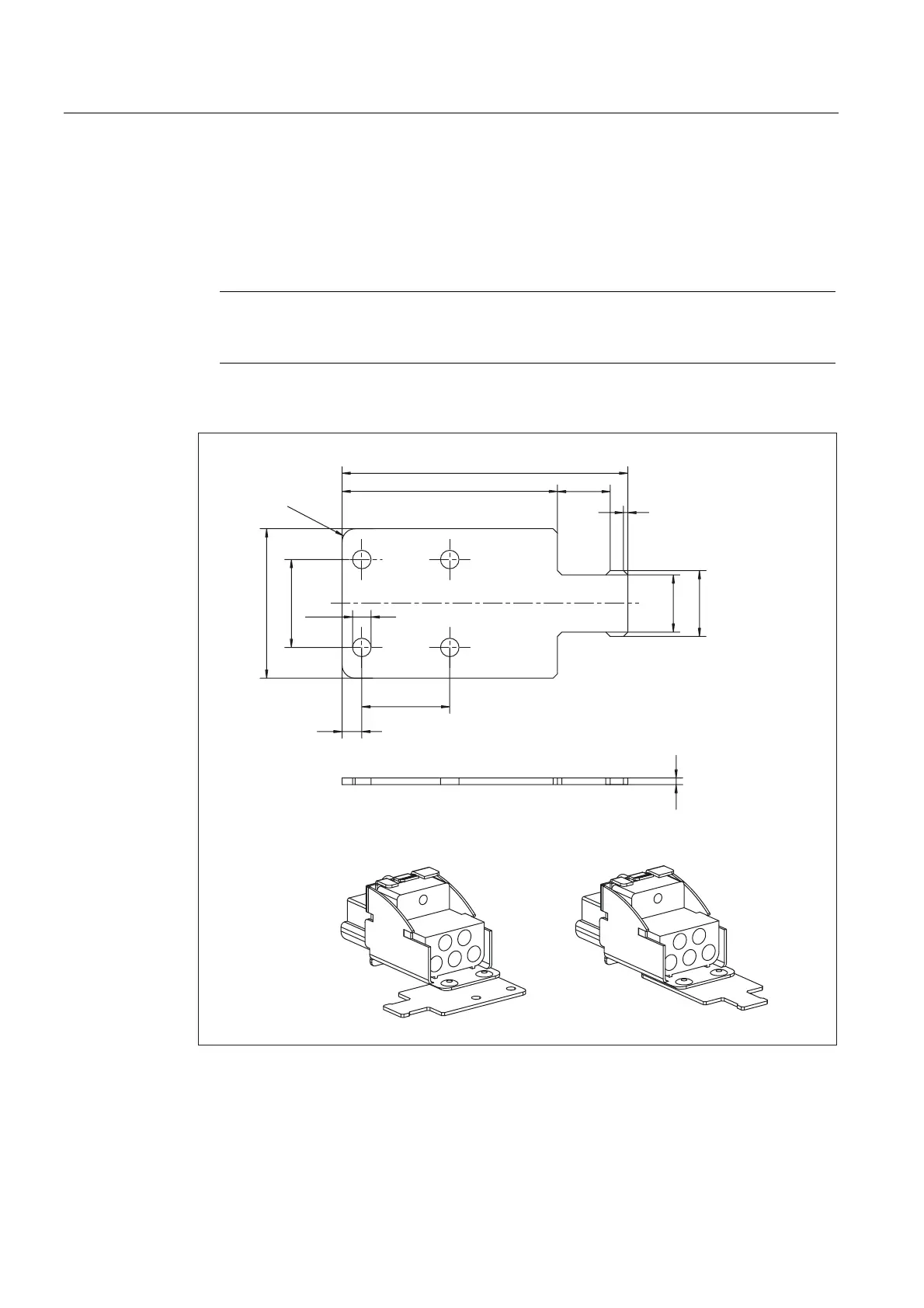

Figure 7-12 Example of a customer-specific metal shield contact
With both variants, the shield for the brake terminal wires must be applied together with
the cable shield.
7. Securing a shield contact constructed by the customer on the shield plate.
