Siemens SINAMICS Series Equipment Manual

Service and Support Booksize
8.2 Replacing Fans
Equipment Manuel for Booksize Power Modules
8-2 Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
Removing the fan:
1. Disconnect the power supply (24 V DC and 400 V AC)
Wait 5 minutes while the DC link energy discharges!
2. Remove the component from the drive line-up.

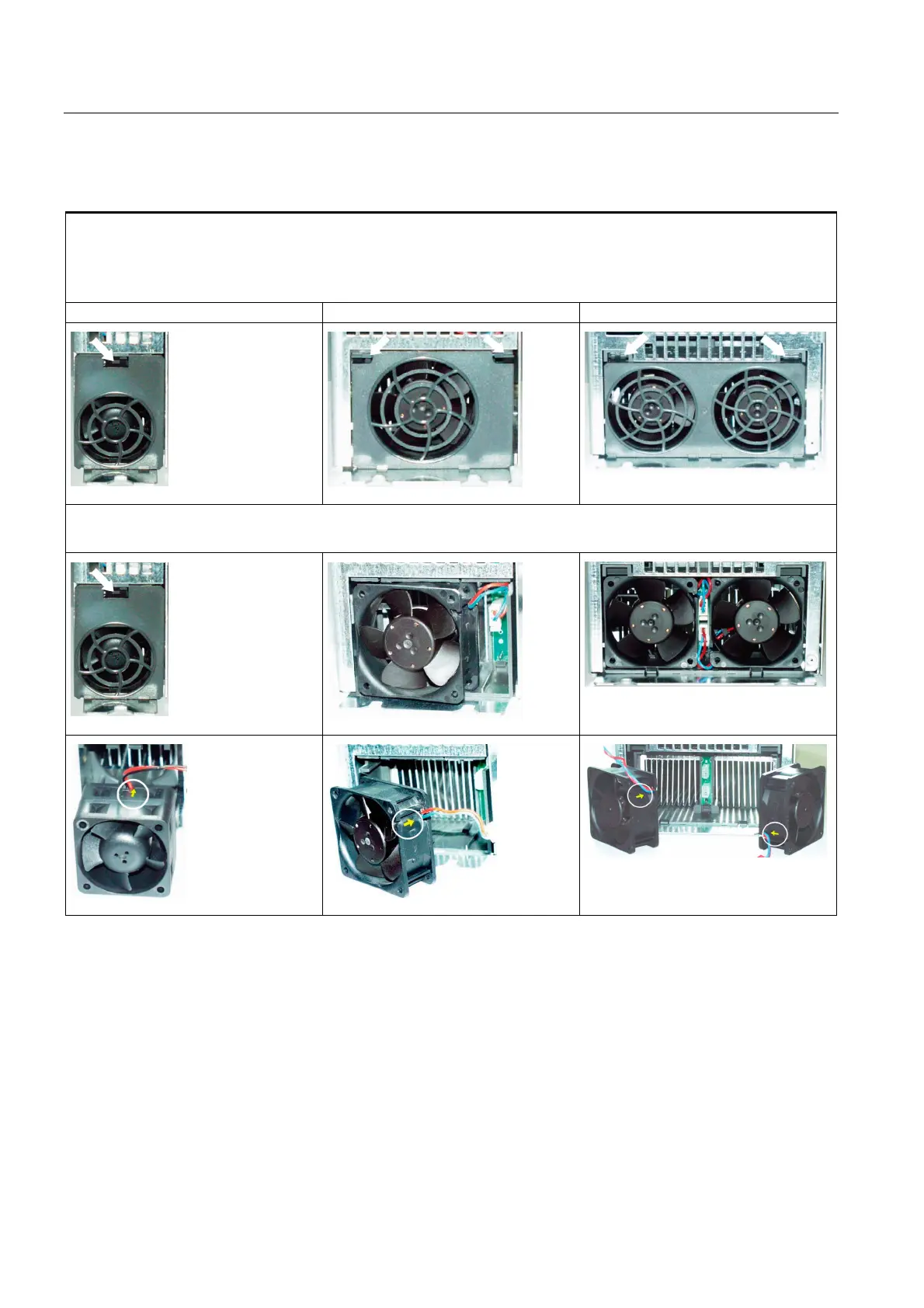

3. Open the fan cover.
Module width: 50 mm Module width: 100 mm Module width: 150 mm and 200 mm
4. Remove the fan.
5. Remove the connector.
Replacing a fan in a module with a width of 300 mm: See: Motor Modules with Internal Air
Cooling – Installation
Installing the fan:
1. Before installing the fan, check the through-flow direction
(the arrow on the fan must point towards the fins).
2. Insert the connector fully.
3. Insert the fan fully.
Do not squash the connection cables!
4. Close the fan cover.
