2.7 Line reactors for Smart Line Modules
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
2-29

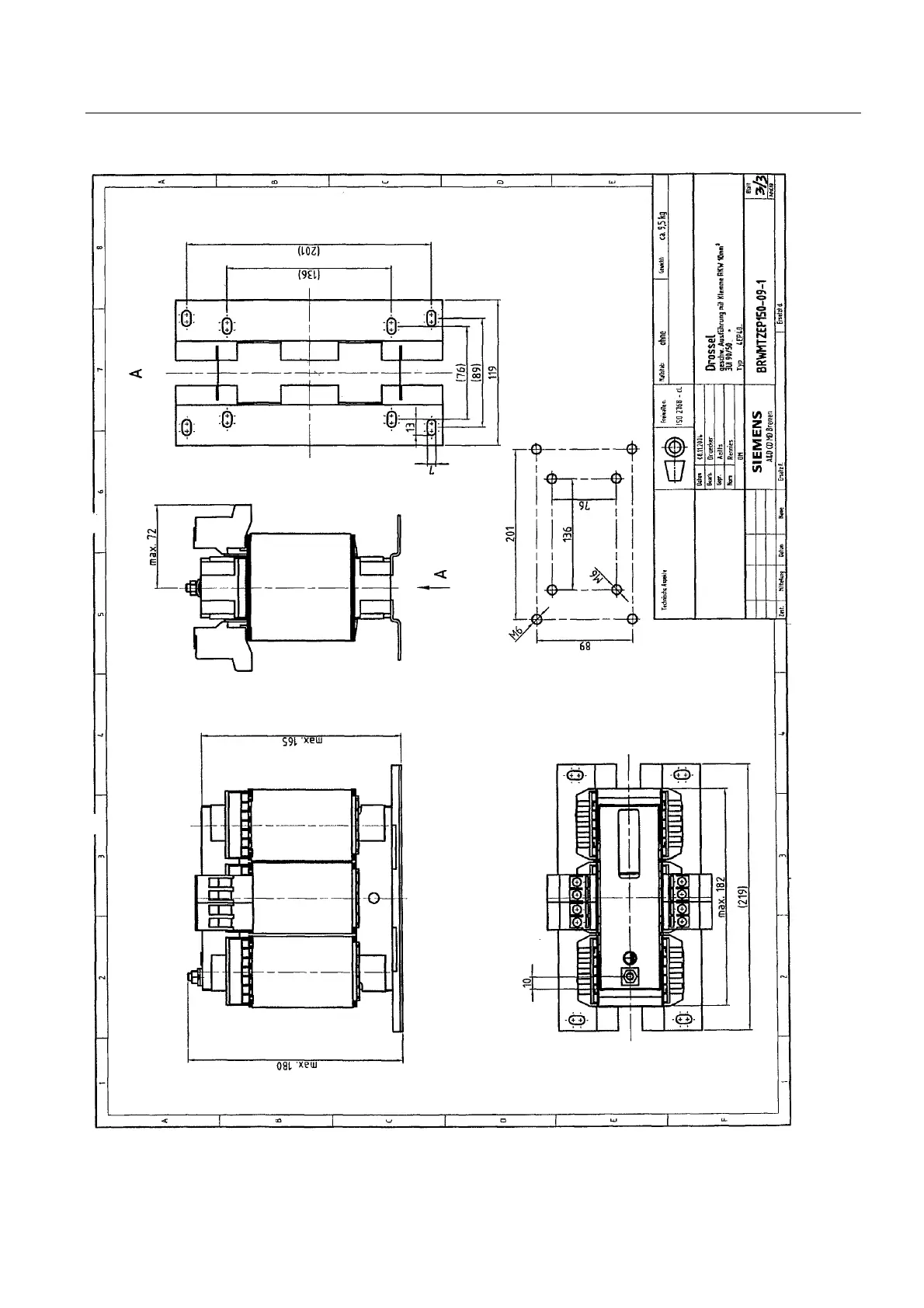

Figure 2-14 Dimension drawing of line reactor for the Smart Line Module 16 kW
