Scope and Multimeter Operations Technical Specifications (Scope Module)
98

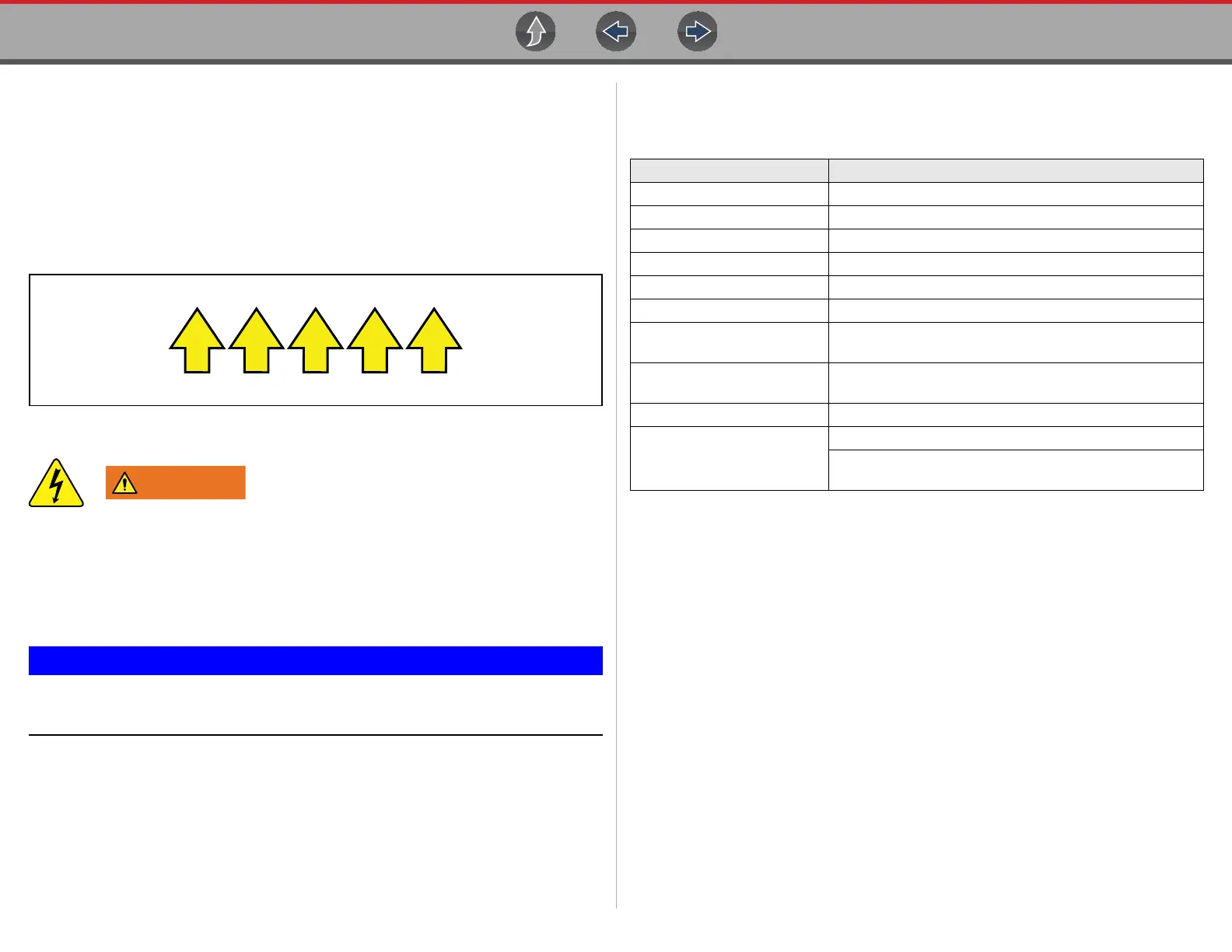

9.2.1 Measurement Out of Range Indicator
A group of arrows display when a measurement is out of range for the scale
selected:
• Arrows pointing UP—measurement over maximum range
• Arrows pointing DOWN—measurement under minimum range
Voltage measurements also display arrows in place of live values when the voltage
exceeds the input rating of the meter.
Figure 9-1
Risk of electrical shock.
• Do not exceed voltage limits between inputs as indicated on the rating label.
• Use extreme caution when working with circuits that have greater than 40
volts AC or 24 volts DC.
Electrical shock can cause personal injury, equipment damage, and/or circuit
damage.
If arrows are displayed in the live voltage values, discontinue circuit
testing.
Correct an out-of-range condition by selecting a scale setting appropriate for the
signal being sampled. See Trace Controls Menu on page 108 for more information.
9.3 Technical Specifications
(Scope Module)
WARN ING
Item Description / Specification
USB Power 5V @ 500mA (supplied by diagnostic tool)
Agency Approval - Rating IEC 61010-1, UL Listed 61010-1 - Category 1
Width 6.3 in. (160 mm)
Height 4.6 in. (118 mm)
Depth 1.1 in. (28 mm)
Weight 0.62 lb (0.28 kg)
Operating Temperature
Range (ambient)
At 0 to 90% relative humidity (non-condensing)
32 to 113°F (0 to 45°C)
Storage Temperature
(ambient)
At 0 to 70% relative humidity (non-condensing)
–4 to 140°F (–20 to 60°C)
Operating Altitude Maximum 2000 m
Environmental Conditions
This product is intended for indoor use only
This product is rated for Pollution Degree 2 (normal
conditions)
