Snap-On Zeus User Manual

General Information Main Topic Links
9
1.1 Diagnostic Tool Feature Locations

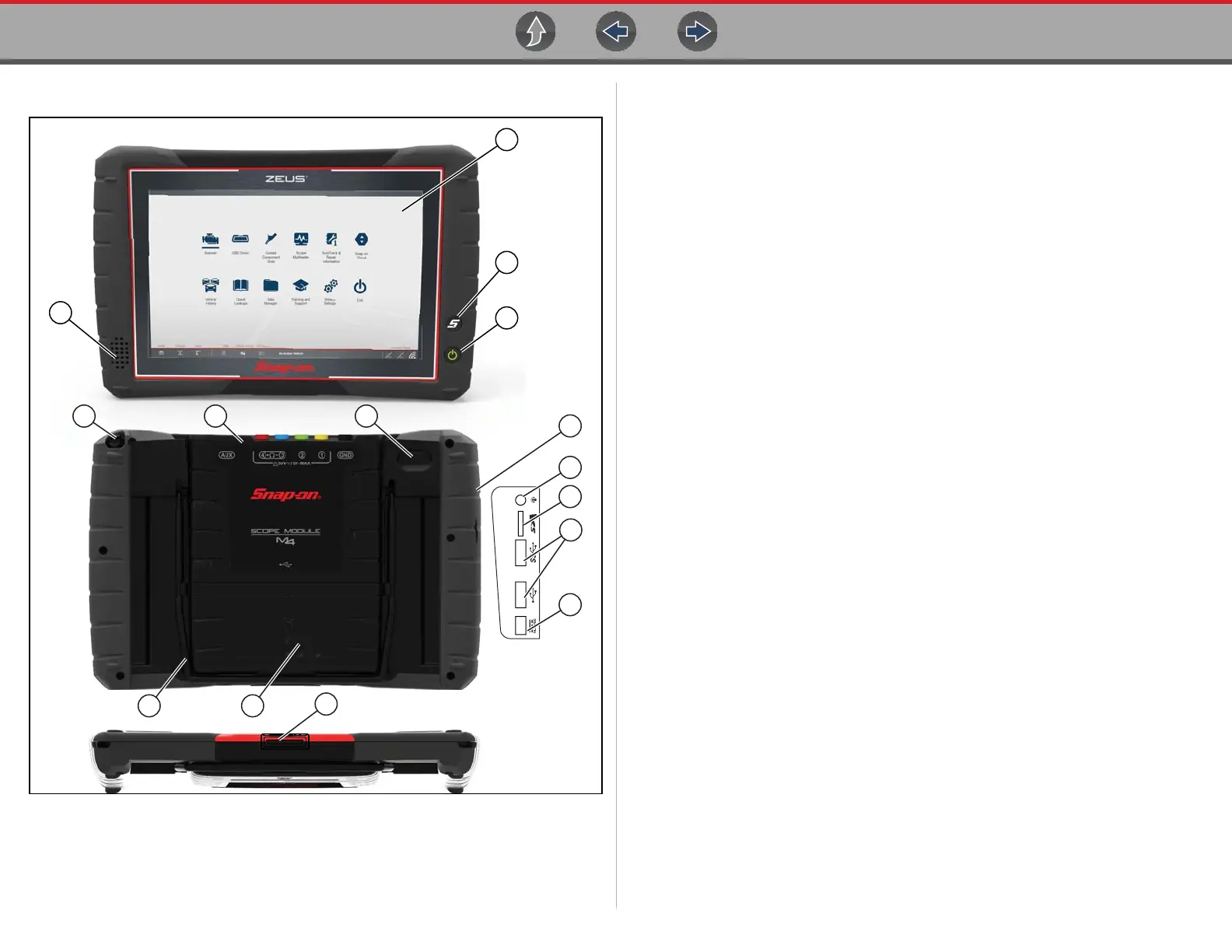

Figure 1-1 Features
4
2
3
15
13
14
5 6
7
11
12
10
9
8
1
1. Capacitive Touch Screen
2. Shortcut (S) Button (special functions)
3. Power Button (with backlit LED functions)
4. Audio Speaker
5. Stylus Storage
6. Scope Module M4 (removable)
7. Camera Lens
8. Communication and Power Jacks Cover
9. Head Phone Jack
10. Micro SD Card Slot
11. USB (universal serial bus) Jacks (2)
12. DC Power Supply Input Jack
13. Collapsible Stand
14. Battery Pack
15. Docking Station Connector

Snap-On Zeus Specifications

General

Memory	4GB RAM
Internal Storage	64GB
Operating System	Android
Connectivity	Bluetooth, Wi-Fi
Battery Life	8 hours
Battery	Lithium-ion
USB	Yes
Software	Snap-On diagnostic software
